Product Series:Drilled series

Product Number:DBH-V9/2.2-NS


1.Diversified types: The multi- drill involves variousarrangement and layout (vertical drill, horizontal drill and saw blade unit),which largely optimizes the production and operation process of panelfurniture.

2.High precision: The inner hole run-out of verticaldrill is ≤0.02 mm, and it can meet the precision requirements for machining ofpanel furniture.

3.High configuration: Inductive switch for looseningbroach for spindle is set for the saw blade, which largely protects the safetyof operators during the machining process.

4.High bearing capacity and rigidity: Ceramic ballbearing of international famous brand is adopted for the spindle, and thebearing span is reasonably optimized; ensure that the spindle has high bearingcapacity, high rigidity and high operating reliability and stability.

5.Customization:Multi- drill can be widely applied for drilling and cutting of various woods,plastics and fiber board, and it can be customized according to user’srequirements.


Spindle Model DBH-V9/2.2-NS
SpeedMotorRated speed (rpm)3000
Motor Maximum Speed (rpm)6000
Maximum speed of longitudinal axis (rpm)5747
Maximum speed of horizontal axis (rpm)/
Maximum speed of saw shaft (rpm)/
PowerRated Power  S1(kW)2.2
Rated Power S6(kW)2.64
TorqueRated Torque  S1(Nm)7.3
Rated Torque S6(Nm)8.8
Maximum Voltage (V)380
Tool installation dimension (mm)10
Maximum size of saw blade (mm)/
Axial extension (mm)60
Cooling mediumElectric fan
Form of LubricationManual fat  injection
The Weight (kg)~34

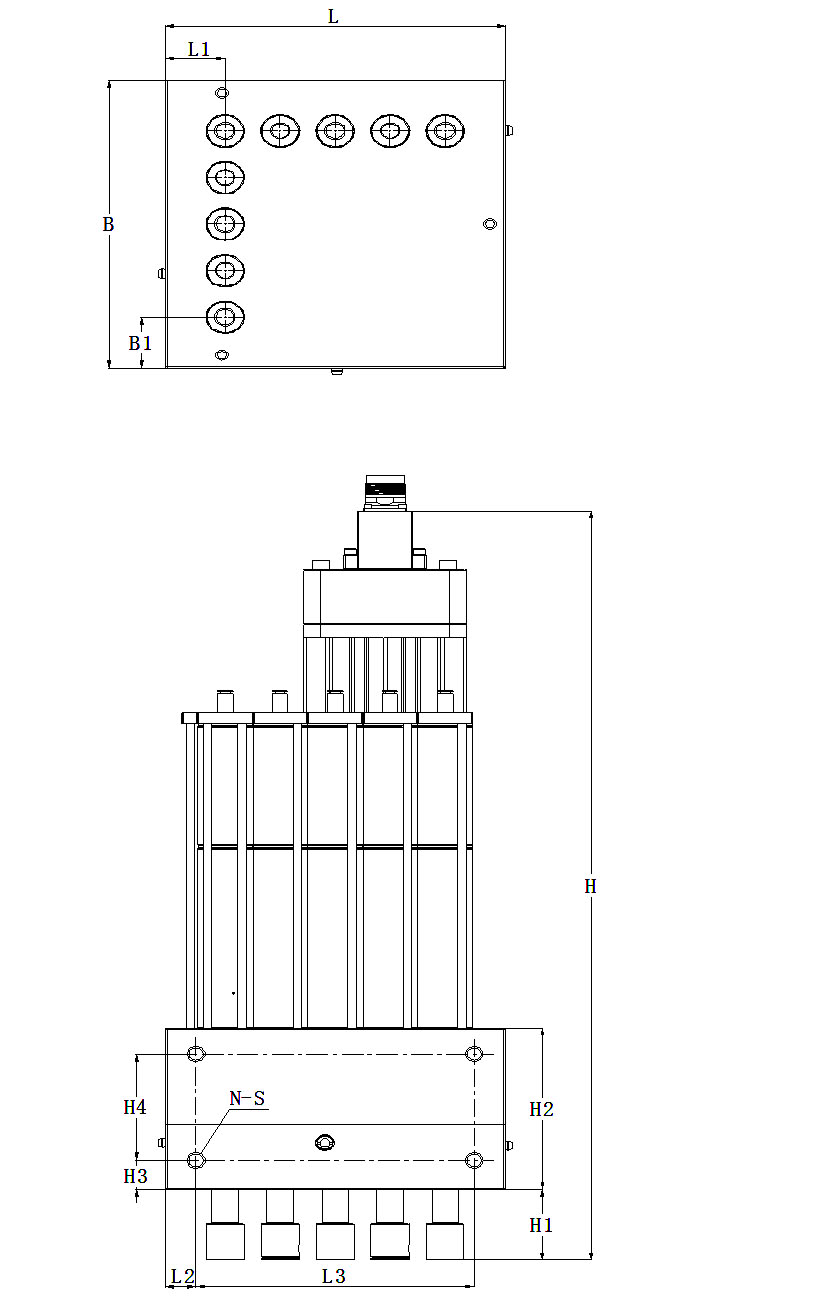

Critical  dimension(mm)H514.6
H148.6
H2111
H319.9
H473
H5/
B198
B135
B2/
L198
L135
L218
L3162
L4/
N-S4-M10
