This product is used in engraving and milling industry, for non-ferrous metal copper alloy, aluminum alloy, acrylic non-metallic materials such as high-speed high-light, and glass, graphite and other materials high-speed grinding.
It is characterized with small heating value, small fluctuation ofthermal elongation and excellent surface machining lines, etc. In surfacemachining quality and fluctuation of thermal elongation, it is the best among100series spindles. It is suitable for high-precision surface machining ofmetals (aluminum and its alloy, copper, etc.) and non-metals (ceramics,acrylic, glass, etc.).
Performance characteristics
1, high precision: engraving and milling the spindle end of the shaft end and cone hole run ≤ 0.001mm, spindle vibration ≤ 0.8mm / s (custom series up to 0.5mm / s).
2, high surface processing quality: ordinary carved milling spindle surface roughness up to Ra0.2, the use of high-precision design of the spindle surface roughness up to Ra0.05.
3, high load and rigidity: the front of the spindle with internationally renowned brands of large shaft bearings and large span bearing layout, to ensure that the bearing capacity and rigidity of the spindle.
4, high configuration: carved milling spindle optional temperature sensor, spindle loose sensor switch, closed-loop control encoder and so on.
5, the handle has a variety of: carving milling spindle spindle can be used ISO, BT, HSK, straight handle and manual ER chuck and other forms to meet the different needs of customers.
6, personalized customization: the company has a strong R & D strength, flexible design and diverse, according to customer requirements of different functions, speed, precision carved milling spindle.
7, the circulating water cooling: in the body to increase the cooling cycle of water on the motor, before and after the bearing cooling. Coolant flow through the rational arrangement of the main body of the circulating cooling channel to take away the spindle when the high-speed rotation of the heat, to thermal equilibrium, so that the spindle temperature constant within a certain range to ensure the safety of the spindle, stable performance, cooling effect, efficiency High, small temperature rise, the spindle thermal elongation is small, the bearing force is small, to ensure the spindle life and spindle axial accuracy.
Spindle Model | DGZX-10036 | |
Maximum Speed(rpm) | 36000 | |
Maximum Voltage(V) | 380 | |
Maximum Power(kW) | 7.2 | |
Rated Power(kW) | 6 | |
Maximum Torque(Nm) | 3.4 | |
Rated Torque(Nm) | 2.8 | |
Tool-change mode | Automatic ISO25/HSKE32 | |
Bearing Parameter | Bearing Model | 2×7007+2×7006 |
Rolling Element Material | Ceramic Ball | |
Form of Lubricatiom | Grease | |
Cooling method and Medium | Water | |
The Weight(kg) | 18.5 | |

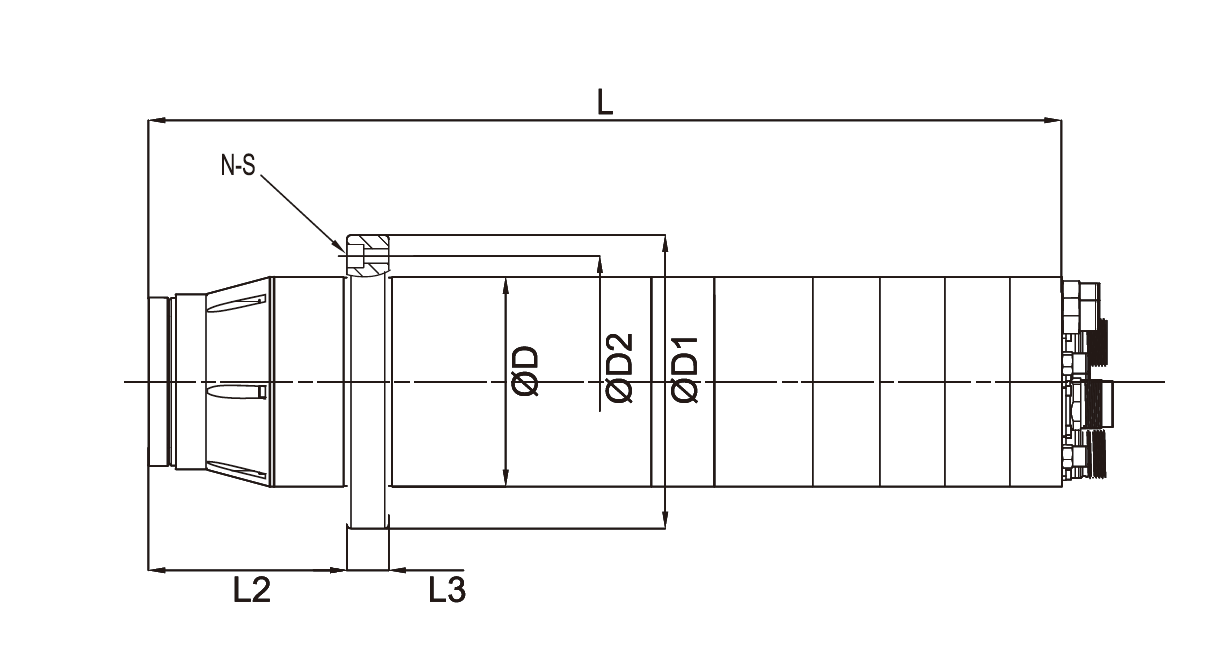

Dimension(mm) | D | 100 |
D1 | 140 | |
D2 | 120 | |
L | 428 | |
L1 | / | |
L2 | 86.7 | |
L3 | 20 | |
N-S | 8-M6(PCDΦ120) |
