Product Series：Lathe spindle

Product Number：DGZYC-15006／5.5-FWVCS

This product is a kind of highly precise lathe motorized spindle,whose max. speed could reach 6000 rpm. With A2-4 nose and an installation diameter of 120 mm, the spindle is configured with 5.5 kW permanent magnet synchronous motor with rated and max. torsion of 26.26 Nm and 52.4 Nm respectively. It can be configured with 5” and 6” chuck and oil cylinder，and it used for steel parts, casting and nonferrous metals as well as installation of Type 36 CNC lathe and turning-milling composite machine tool.

And the same mounting size as the universal A2-4 external drive spindle, can be directly switched. As a kind of high-speed turning lathe motorized spindle ,it is mainly applied to processing in such fields as hardware, clock, lamps, etc.

Features

1. Application of high-performance heavy load bearing:

Through optimizing bearing application and with a high rotation precision, this product is applicable to high-speed cutting of nonferrous metals in clock and lamp field and could ensure excellent appearance texture. The roughness and roundness of cut sample could be Ra≤0.4μm and ≤2μm respectively.

2. High-performance permanent magnet synchronous motor：

Rated power: 5.5 kW

Rated torque: 26.26Nm

Max. speed: 6000 rpm

Max. torque: 52.4 Nm

3. Diverse configuration：

Voltage and encoder could be chosen based on the specific demands.

Parameter

Motor type	3-phase AC permanent-magnet synchronous motor
Max. speed (rpm)	6000
Max. current (A)	42
Max. torque (Nm)	52.4
Rated voltage (V)	380
Rated power (S1/100%) (kW)	5.5
Rated torque (S1/100%) (Nm)	26.26
Balancing grade	G0.4
Lubrication form	Oil grease
Nose form	A2-4
Taper of bore hole	1:20
Cone run-out (mm)	≤0.003
Front face run-out (mm)	≤0.003
Run-out of standard bar at 300mm	≤0.01
Bearing model	3x7014+2x7012
through-hole diameter (mm)	φ46
Encoder	Sinusoid magnetic sensing encoder / Encoder of Xindai
Weight (kg)	60
Installation form	Horizontal installation
A	φ150
B	φ190
C	φ63
D	φ100
L	517
L1	260
L2	11
Applicable CNC system：Siemens, Fanuc,Xindai, Huazhong Numeral Control, GSK, Baoyuan etc.

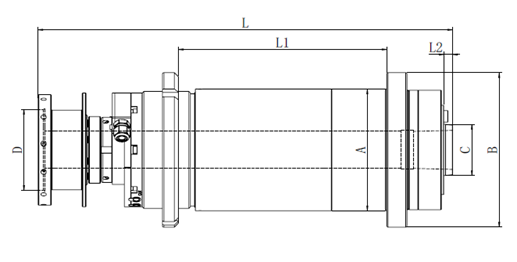

Dimensions
