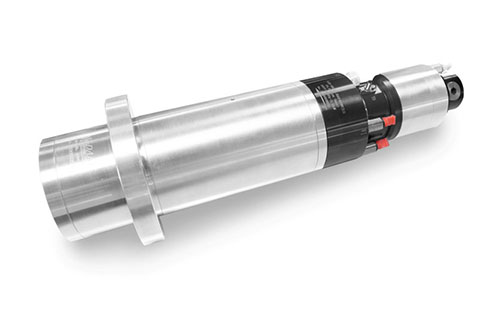

This product is a super fine air float + ultrasonic composite processing spindle, the maximum speed of 24,000 rpm, the product is mainly used for hard and brittle materials processing.
The main features of the spindle are as follows:
1) ultrasonic vibration grinding is the use of ultrasonic vibration, wheel (or props) rotation and cavitation effect of a composite processing methods, high processing efficiency, the tool does not stick stick debris, which greatly extend the tool life;
2) the use of hydraulic automatic tool change, the use of HSK-E25 handle, chuck specifications for the ER11;
3) the use of air bearing support, high precision, non-contact, no wear, long life;
4) three-phase AC induction motor drive;
5) Spindle built-in KTY temperature sensor, for the motor to do when the temperature protection can be read.

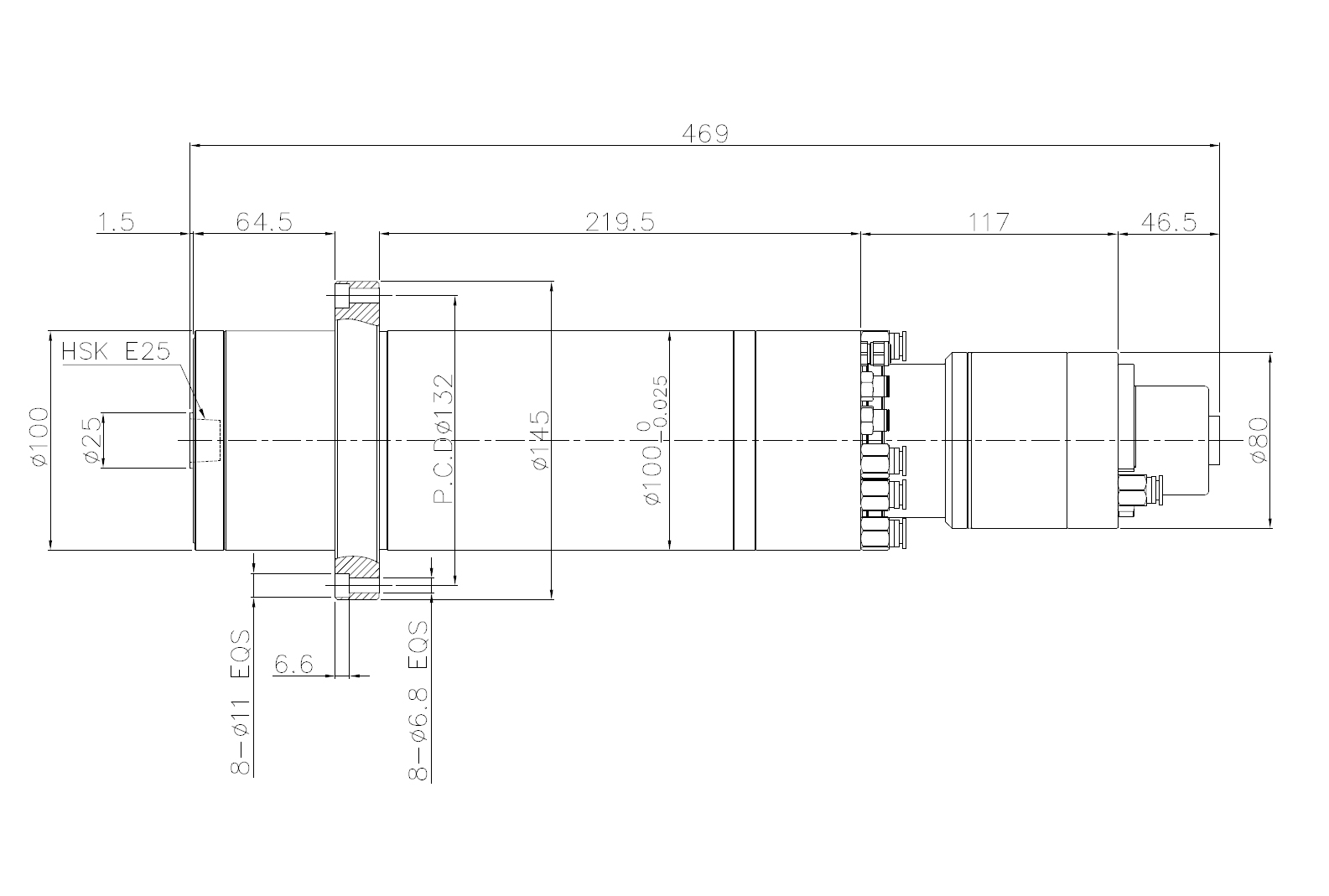

Spindle Model | DGZX-10024/3.5UA3-KFHWVJLS | ||
The motor type | The motor type | Asynchronous | |
Maximum Speed(rpm) | 24000 | ||
Rated Power(kW) | S1-100% | 3.5 | |
S6-40% | 4.2 | ||
Maximum Torque(Nm) | S1-100% | 1.4 | |
S6-40% | 1.68 | ||
Rated Speed(rpm) | 24000 | ||
Rated Voltage[V] | 380 | ||
Bearing lubrication mode | Grease | ||
Chuck type | HSK-E25 | ||
Loose knife | Hydro-cylinder | ||
Cooling method | Internal water cooling | ||
Central cooling | Match | ||
Encoder | Sinusoidal waves1Vss | ||
Ultrasonic vibration frequency[kHz] | 15~28 | ||
Ultrasonic power[W] | 300W | ||
Ultrasonic amplitude[um] | 4~12 |
