Product Series:Super Finish Spindle

Product Number:DQFX-1501

This product is an ultra accurate air bearing high-speed motorizedspindle, with the maximum speed of 100,000rpm. This spindle is used for theultra accurate machining industry mainly for high-speed and high-accuracymachining of materials such as aluminum and its alloy, copper and its alloy,acrylic materials, etc. Under high accurate machining conditions, it canachieve a mirror effect with high gloss and clear outline.

Performance characteristics

1, long life: the use of gas hydrostatic bearings, non-contact, no wear, long life.
2, high precision: Due to the homogenization effect of gas hydrostatic bearings and up to 0.2um parts machining accuracy, there is a higher static and dynamic accuracy than the ball bearing spindle.
3, high rigidity, low vibration: bearing after precision calculation and unique simulation analysis software verification, with low vibration, high rigidity, high load capacity advantages.
4, high configuration: equipped with high-performance AC induction motor, high torque output, suitable for a variety of processing applications.
5, high reliability: the use of double spiral cooling structure, the spindle to maintain constant temperature processing, the performance is stable and reliable.
6, automatic tool change: some products are equipped with HSK E25 / E32 / E40 handle, with a higher axial, radial positioning accuracy, and can automatically change the knife.


主轴型号Spindle  ModelDQFX-1501
轴承类型Bearing Type气浮Air Bearing
最高转速Maximum  Speed(rpm)10,000
最高电压Maximum  Voltage(V)380
最大功率(S6)Maximum  Power(kW)3.6
最大扭矩(S6)Maximum  Torque(Nm)3.6
夹头规格Chuck  Specification直接刀盘

Direct cutter head

换刀方式Tool Changing手动Manual
润滑形式Form of  Lubrication空气Air
冷却形式及介质
    Cooling method and Medium
内冷,水或油
    Internal Cooling,Water or Oil
重量Weight(kg)58.9

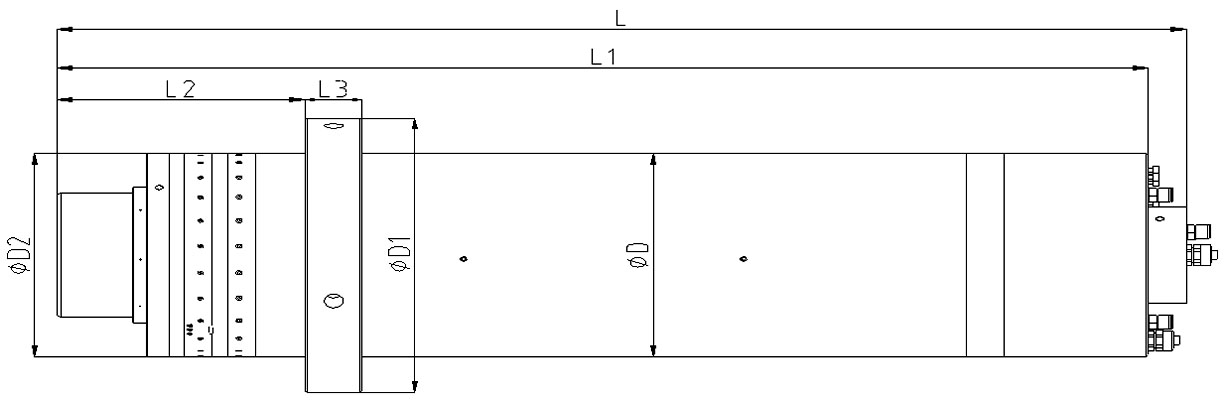

尺寸
    Dimension
    (mm)
D149.98-149.99
D1202
D2150
L596
L1576
L2131
L330
N-S8-M10(PCDφ180)
