Product Series:Super Finish Spindle

Product Number:DQFX-08080/1.5-KPWM

Thisspindle is an air bearing ultra accurate high-speed motorized spindle, which ischaracterized with a high speed, high accuracy and high rigidity. It is mainlyused for precision equipment such as engraving and milling machine or machiningcenter, etc.; it can achieve the ultra-accurate efficient machining ofmaterials such as non-ferrous metal (aluminum alloy, copper alloy), glass,sapphire, ceramics, graphite, etc.


Performance characteristics

1, long life: the use of gas hydrostatic bearings, non-contact, no wear, long life.
2, high precision: Due to the homogenization effect of gas hydrostatic bearings and up to 0.2um parts machining accuracy, there is a higher static and dynamic accuracy than the ball bearing spindle.
3, high rigidity, low vibration: bearing after precision calculation and unique simulation analysis software verification, with low vibration, high rigidity, high load capacity advantages.
4, high configuration: equipped with high-performance AC induction motor, high torque output, suitable for a variety of processing applications.
5, high reliability: the use of double spiral cooling structure, the spindle to maintain constant temperature processing, the performance is stable and reliable.
6, automatic tool change: some products are equipped with HSK E25 / E32 / E40 handle, with a higher axial, radial positioning accuracy, and can automatically change the knife.



Spindle  ModelDQFX-08080/1.5-KPWM
Bearing TypeAir Bearing
Maximum  Speed(rpm)80,000
Maximum  Voltage(V)220
(S6)Maximum  Power(kW)1.8
(S6)Maximum  Torque(Nm)
0.29
Chuck  SpecificationHSK E25
Tool ChangingAutomatic
Form of  LubricationAir

Cooling method and Medium

   Internal Cooling,Water or Oil
Weight(kg)8.2

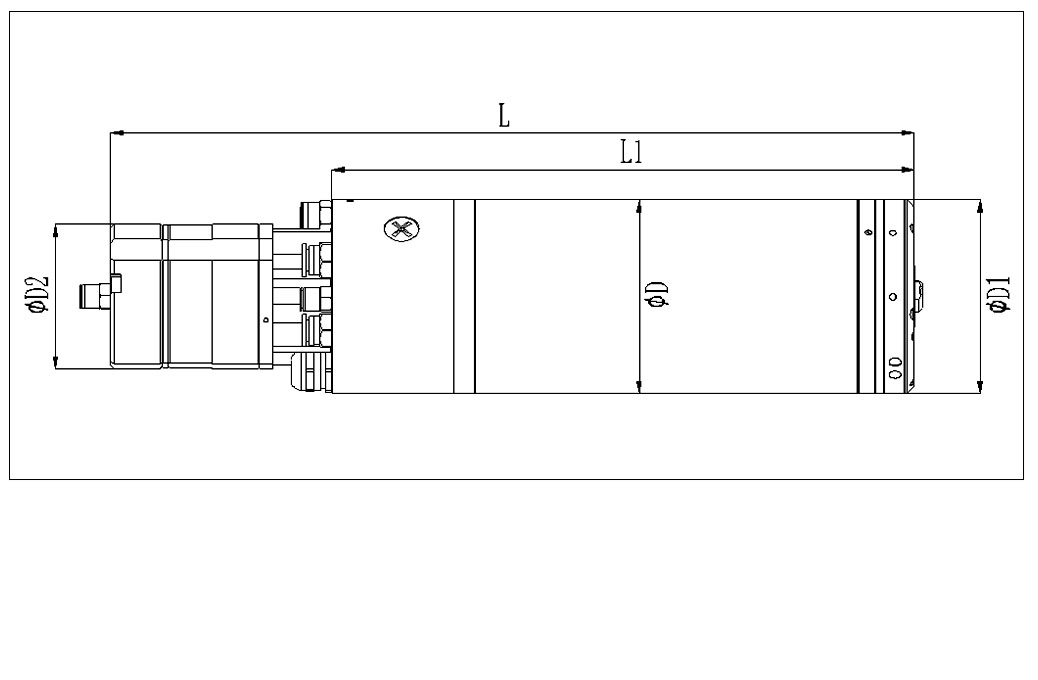

  Dimension
    (mm)
D79.982-79.99
D175
D2/
L332.6
L1240
L2/
L3/
N-S/
