Product Series:Belt Driven and Direct Driven Spindle

Product Number:DGZZ-10020

This product is a high-speed mechanical type straight spindle. The connection shanktype for the spindle is BT30. Its maximum speed is 20,000rpm.

This product of innovative patented structure can effectively control thetemperature rise of the spindle, without need of the oil cooler. The front-endlabyrinth seal structure after simulation analysis and optimization, and tinypores evenly distributed, which can effectively prevent the cutting fluid andmachining debris from entering. At the same time, the innovative seal withdynamic pressure effect can also revolutionarily improve the waterproofperformance of the spindle.

Thanksto its advantages of superior precision, dynamic and static rigidity, lowvibration and low noise, the stability, reliability and service life of thisspindle are greatly improved.

1.Highprecision: The yaw of the core taper hole is ≤0.002mm/s; the run-out at the300mm position of the standard rod is ≤0.008; the dynamic balancing grade isG0.4; so it is characterized with unparallel high precision
2.Highconfiguration: With the bearing of an international well-known brand and partsof high standards, it can ensure the long-term stability and reliability of thespindle. The spindle is aligned with the drive motor through a coupling toachieve synchronous transmission.
3.Lownoise: Under the same operational conditions, its noise at the maximum speed isabout 5DB lower than that of the straight type coupling of national standard.It can provide clients with better machining performance and healthy workingenvironment.
4.Diversityof shanks: Shank interface types such as ISO, BT, HSK, etc. can meet differentapplication needs of customers.
5.Highstability: Designed with unique and stable cutter release mechanism with anultra long service life (≥2 million times), it can ensure the long service lifeof consumables.
6.Uniquedesign: Thanks to the design of air curtain seal +labyrinth seal, it canrevolutionarily improve the sealing effect of the spindle and effectivelyprevent cutting fluid and foreign matters from entering so that the spindle canalso be operated normally under poor conditions. Therefore, it can reduce thefaults of the machine due to seal problems, thus improving the efficiency forthe customer.
7.Thefront end of the spindle is equipped with the cutter cooling ring spray system.For the ring spray, the angle of the cooling nozzle can be freely adjustedaccording to different parts or cutter cooling requirements. The spring spraymay be at the end surface of spindle nose, where it is closer to the requiredcooling position so that better effect of cooling and chip removal can beachieved.

8.Withthe drive motor, it can generate a large torque at a low speed and a big power ata high speed.


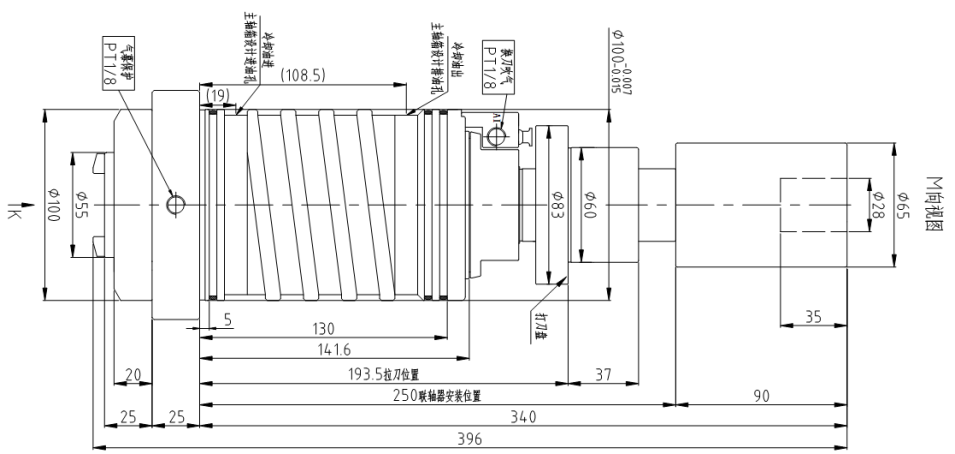

Serial numberProjectStandard value
1Maximum Speed(rpm)
20000
2Model of Tool-holder
BT30
3Bearing Model
4×7008
4Form of Lubrication
Grease
5Pretightening method
Positioning pretensioning
6Allowable temperature rise(℃)
≤18
7Claw form
Four petal claw
8Clamping force(N)
2500-3000
9Dynamic Balance Grade
G0.4
10Assembly direction
Vertical assembly
11Assembly diameter(mm)
Φ100(-0.007 /-0.015)
12
The Weight(kg)
≈14.5
13Spindle nose end runout(μm)
≤3.0
14Spindle BT30 cone aperture to beat(μm)
≤2.0
15Spindle coupling radial runout(μm)
≤8.0
16Scalpel(mm)
0.4-0.6
17BT30 standard bar 25mm radial runout(μm)
≤2.0
18BT30 standard bar 300mm radial runout (μm)
≤8.0
19Axial rigidity(N/μm)
≥60
20Radial rigidity(N/μm)
≥75
