Product Series:Internal grinding series

Product Number:DGZM-0840H

This product is a high-speed motorized spindle for internal grindingmachine, with the maximum speed up to 40,000rpm, rated power of 2.5kW and ratetorque of 0.6Nm. It is mainly used for grinding and cutting of high-precisionproducts. Its assembly diameter is 80h6.

Performance characteristics
1, high precision: grinding the shaft end of the hole full beating ≤ 0.002mm, spindle vibration ≤ 1mm / s, with unparalleled high-precision features.
2, high configuration: grinding spindle with temperature, vibration sensor (optional), the use of internationally renowned brands P2-class bearings.
3, the circulating water cooling + cold water cooling: cooling water forced to take the bearing and the heat generated by the processing, effectively inhibit the spindle temperature, reduce the spindle thermal deformation, to provide better processing accuracy and surface roughness. The center of the water-cooled way using the world's leading non-contact seal, to ensure the performance of the spindle seal under the premise of greatly improving the sealing life.
4, compatibility, good expansion: grinding spindle has a good compatibility, and has been successfully applied to a number of internationally renowned brands of grinding machines.
5, personalized custom: grinding spindle can be widely used in various types of metal, non-metallic grinding grinder, but also according to the special needs of customers customized.
6, the circulating water cooling: in the body to increase the cooling cycle of the waterway on the motor, before and after the bearing cooling. Coolant flow through the rational arrangement of the main body of the circulating cooling channel to take away the spindle when the high-speed rotation of the heat, to thermal equilibrium, so that the spindle temperature constant within a certain range to ensure the safety of the spindle, stable performance, cooling effect, efficiency High, small temperature rise, the spindle thermal elongation is small, the bearing force is small, to ensure the spindle life and spindle axial accuracy.
7, good seal: grinding wheel in the end of the labyrinth seal structure, which can effectively prevent the processing of cutting fluid and foreign body invasio


主轴型号Spindle ModelDGZM-0840H
最高转速Maximum Speed(rpm)40000
额定转速Rated Speed(rpm)40000
功率Power(kW)额定输出功率Rated Power(S1-100%)2.5
额定输出功率Rated Power(S6-40%)3
扭矩Torque(Nm)额定输出扭矩Rated Torque(S1-100%)0.6
额定输出扭矩Rated Torque(S6-40%)0.72
额定输入电压Rated Voltage(V)380
电机类型The motor type异步Asynchronous
刀具接口Tool interface磨杆Grinding rod M14×1.5
换刀方式Tool-change mode手动Manual

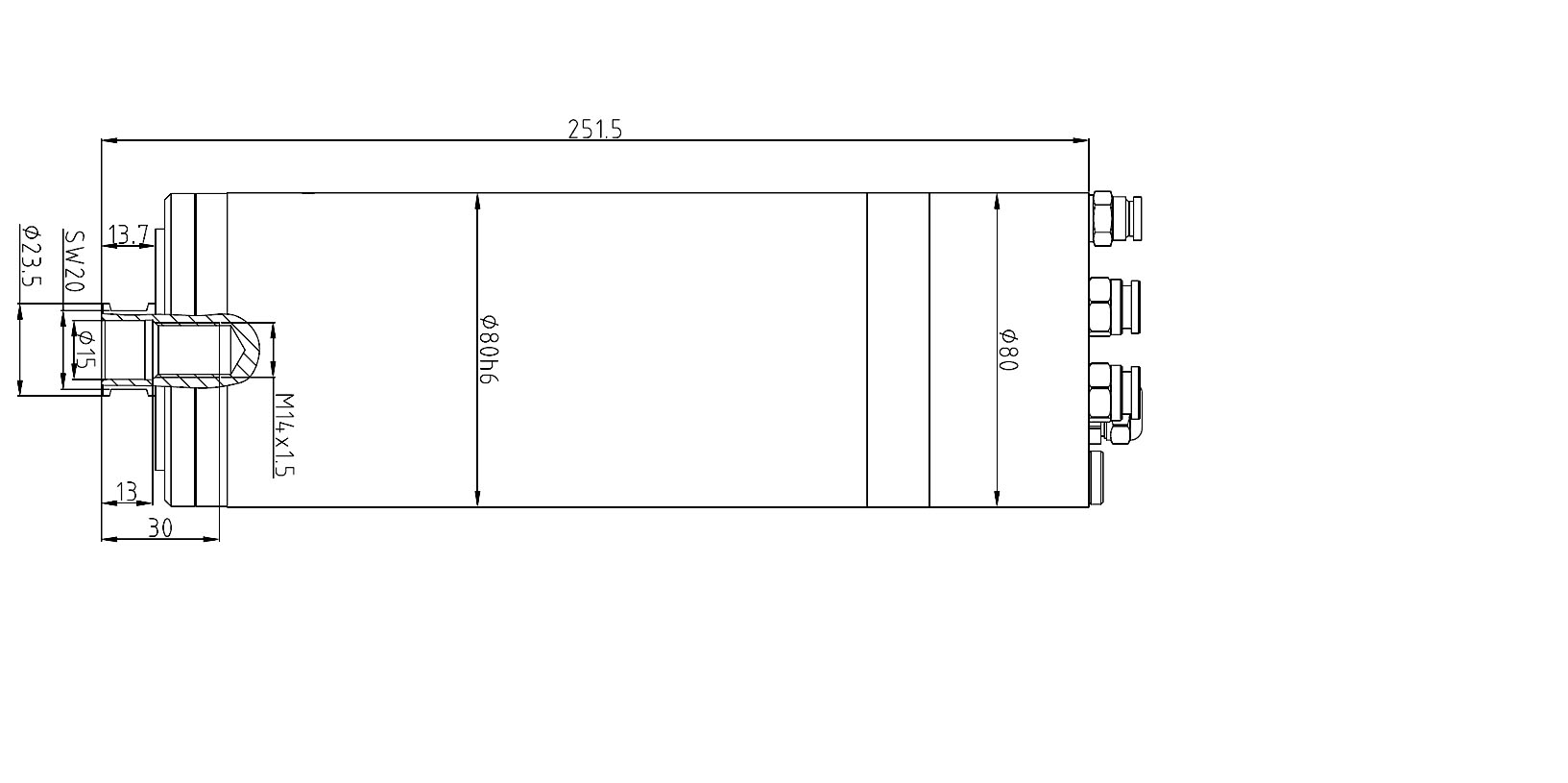

装配直径Assembly diameter(mm)80h6
振动值Vibration value(mm/s)0.8
冷却介质Cooling medium水冷Water-cooling
中心水冷Center water cooling无Nothing
气幕密封Air curtain sealHave
轴承润滑形式Bearing lubrication mode油脂Grease
重量The Weight(kg)7
