Product Series:Handle of spring collet

Product Number:BT-KR

BT-KR shank

Applicable for machining centers of higher speed.

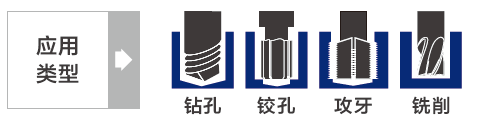

Application type

Drilling, reaming,tapping, milling and cutting


1.High precision: Shankrun-out accuracy: ≤2μm.

2.Combined run-outaccuracy: ≤5μm.

3.Dynamic balancinggrade: ≤G1.

4.Advanced process ofsurface wearing resistance and corrosion resistance.

5.With a simplestructure, the cutter can be loaded and unloaded quickly.

6.It is suitable for amachining center with a relatively high speed.

7.The taper angle of KRchuck for BT shank is 5°.

8.Advantages of BTshank with KR chuck: High repeatability precision (≤5μm), long service life,clamping range of Φ1.0-24.0mm, H7-precision cutter. It is widely used formilling, drilling, tapping, engraving and other machining areas.
