Product Series:Handle of spring collet

Product Number:ISO-SK

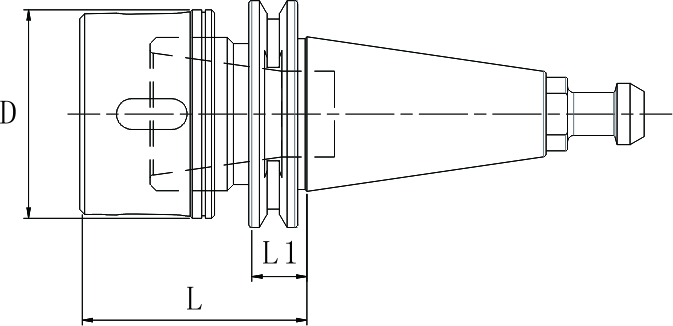

ISO-SK shank

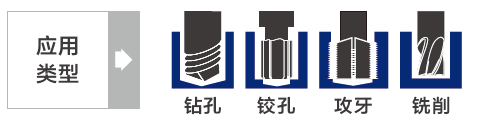

Application type

Drilling, reaming,tapping, milling and cutting





1.High precision: Shankrun-out accuracy: ≤2μm.

2.Combined run-outaccuracy: ≤5μm

3.Dynamic balancinggrade: ≤G1

4.Advanced process ofsurface wearing resistance and corrosion resistance

5.Keyway-free structureis suitable for the high-speed application.

6.It is suitable forengraving, milling and woodworking machining.

7.The taper angle of SKchuck for ISO shank is 4°.

8.Advantage of ISOshank with SK chuck: High precision, a long service life, 1.5 times greaterthan the torque value of any other type of chuck, clamping range ofΦ1.0-16.0mm, H7-precision cutter.
