Product Series:Handle of spring collet

Product Number:ISO-KR

ISO-KR

Application type

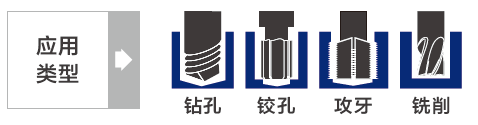

Drilling, reaming,tapping, milling and cutting




1.High precision: Shank run-out accuracy:≤2μm.

2.The taper angle of KRchuck for ISO shank is 5°.

3.Advantage of ISOshank with KR chuck: High repeatability precision (≤5μm), long service life andclamping range of Φ1.0-14.5mm H7-precision cutter.

4.Combined run-outaccuracy: ≤5μm.

5.Dynamic balancinggrade: ≤G1.

6.Advanced process ofsurface wearing resistance and corrosion resistance.

7.Keyway-free structureis suitable for the high-speed application.

8.It is suitable forengraving, milling and woodworking machining.
