Product Series:Super Finish Spindle

Product Number:DQFX-08080/1.5-WM

This spindle is an air bearing ultra accurate high-speed motorizedspindle, which is characterized with a high speed, high accuracy and highrigidity. It is mainly used for precision equipment such as engraving andmilling machine or machining center, etc.; it can achieve the ultra-accurateefficient machining of materials such as non-ferrous metal (aluminum alloy,copper alloy), glass, sapphire, ceramics, graphite, etc.

Performance characteristics

1, long life: the use of gas hydrostatic bearings, non-contact, no wear, long life.
2, high precision: Due to the homogenization effect of gas hydrostatic bearings and up to 0.2um parts machining accuracy, there is a higher static and dynamic accuracy than the ball bearing spindle.
3, high rigidity, low vibration: bearing after precision calculation and unique simulation analysis software verification, with low vibration, high rigidity, high load capacity advantages.
4, high configuration: equipped with high-performance AC induction motor, high torque output, suitable for a variety of processing applications.
5, high reliability: the use of double spiral cooling structure, the spindle to maintain constant temperature processing, the performance is stable and reliable.
6,
Automatic cutter change: Some products are equipped withHSK E25/E32/E40 shank to achieve higher axial and radial positioningaccuracy. Cutter can also be changed automatically.



Spindle  ModelDQFX-08080/1.5-WM
Bearing TypeAir Bearing
Maximum  Speed(rpm)80,000
Maximum  Voltage(V)220
(S6)Maximum  Power(kW)1.8
(S6)Maximum  Torque(Nm)0.35
Chuck  SpecificationDD16
Tool ChangingManual
Form of  LubricationAir

Cooling method and Medium

  Internal Cooling,Water or Oil
Weight(kg)6.7

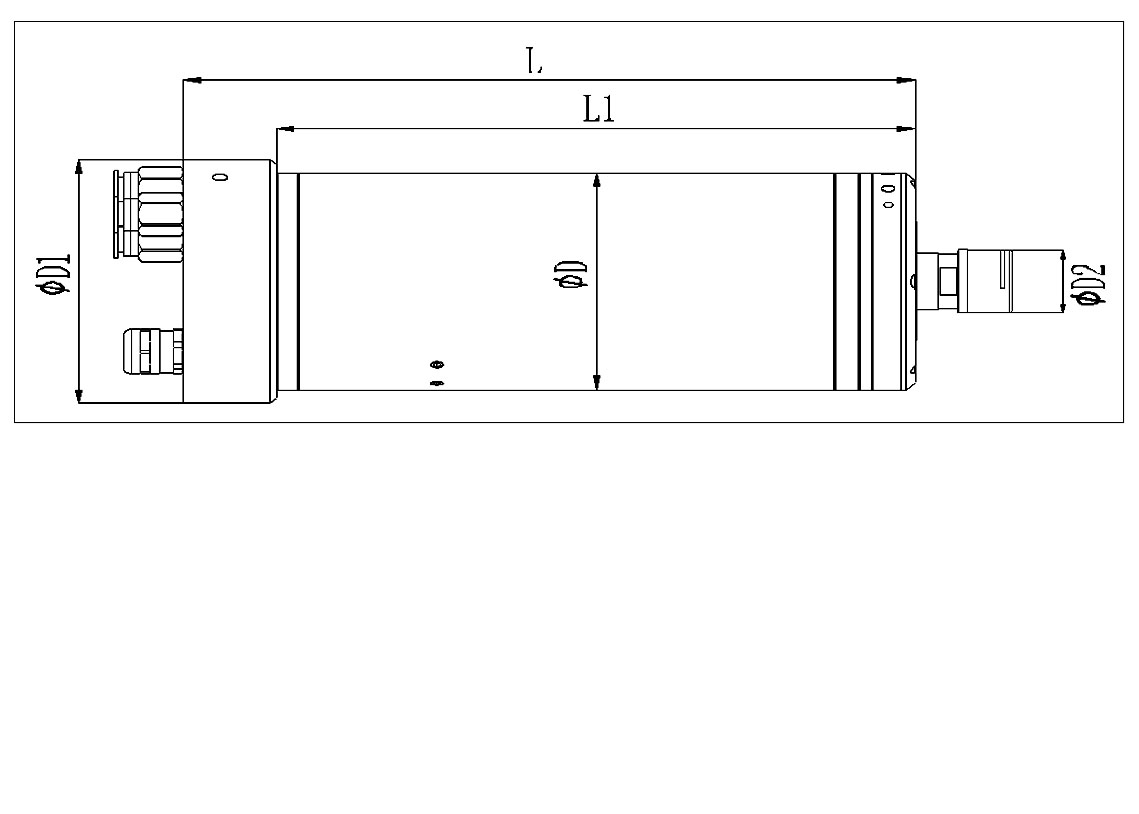

Dimension
  (mm)
D79.982-79.99
D190
D223
L211
L1184
L216
L3/
N-S/
