The product is used for machining of hard and brittlematerial or new type materials, such as sapphire glass, ceramics,semiconductor, quartz, and so on.
1.Ultrasonic vibration grinding: It is a kind ofcombined machining method by making use of ultrasonic vibration, grinding wheel(or tool) rotation and cavitation effect; scrap will not adhere to cutter; thecutting capacity of cutter and the quality of machined surface will beimproved.
2.Hydraulic or pneumatic automatic cutter changing isadopted; HSK-E25 cutter handle is adopted.
3.The revolution reaches as high as 32,000 rpm, whichlargely improves the machining efficiency.
4.Three-phase AC asynchronous motor drive.

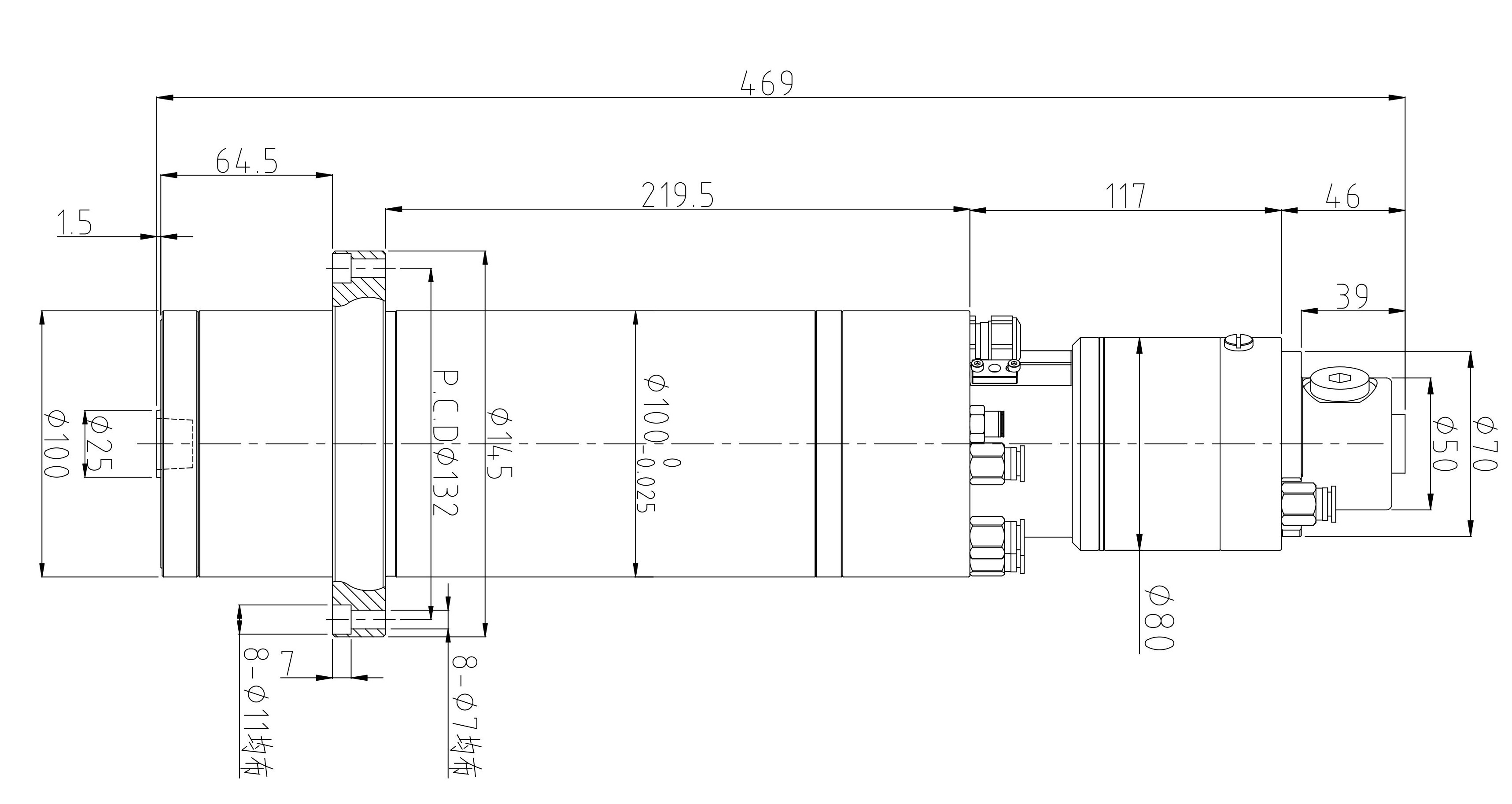

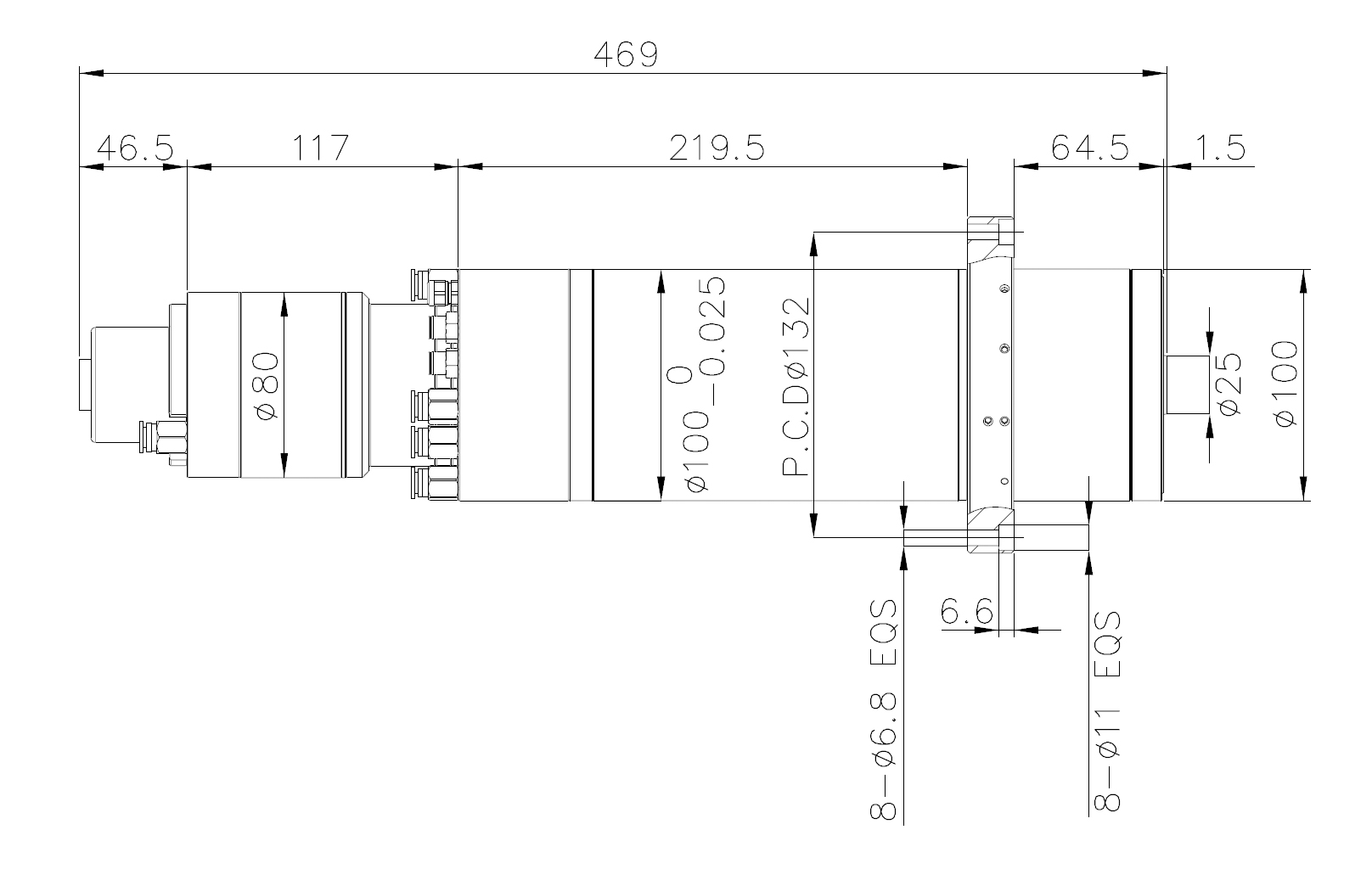

Spindle Model | DGZX-10032/3.5U-KFHWQVJLS | ||
The motor type | The motor type | Asynchronous | |
Maximum Speed[rpm] | 32000 | ||
Rated Power[kW] | S1-100% | 3.5 | |
S6-40% | 4.2 | ||
Rated Torque[Nm] | S1-100% | 1.4 | |
S6-40% | 1.68 | ||
Rated Speed[rpm] | 24000 | ||
Rated Voltage[V] | 380 | ||
Bearing lubrication mode | Oil gas | ||
Shank specification | HSK-E25 | ||
Loose knife | Hydro-cylinder | ||
Cooling method | Internal water cooling | ||
Central cooling | Match | ||
Encoder | Sinusoidal waves1Vss | ||
Ultrasonic vibration frequency[kHz] | 15~28 | ||
Ultrasonic power[W] | 300W | ||
Ultrasonic amplitude[um] | 4~12 |
