Product Series:Super Finish Spindle

Product Number:DQFX-062100/1.5-WM

This product is an ultra accurate air bearing motorized spindle, withthe maximum speed of 100,000rpm. This spindle is mainly used for the high glossindustry for machining materials such as non-ferrous metals including aluminumand its alloy, copper and its alloy, non-metal materials including acrylicmaterials, etc.

1.Long service life: With the air static pressure bearing, it ischaracterized with non contact, free wearing and long service life.

2.High precision: Thanks to the homogenization effect of the air staticpressure bearing and the part machining accuracy up to 0.2um, it has higherstatic and dynamic accuracy than that of ball bearing motorized spindle.

3.High rigidity and low vibration: Upon precise calculation and uniquesimulation analysis software verification, the bearing has advantages of lowvibration, high rigidity and high bearing capacity.

4.High configuration: With high performance AC induction motor and bigtorque output, it is suitable for a variety of machining applications.

5.High reliability: With the dual-spiral cooling structure, the spindle iskept at a constant temperature for machining. And all performance indicatorsare stable and reliable.


Spindle  ModelDQFX-062100/1.5-WM
Bearing TypeAir Bearing
Maximum  Speed(rpm)100,000
Maximum  Voltage(V)220
(S6)Maximum  Power(kW)1.5
(S6)Maximum  Torque(Nm)0.138
Chuck  SpecificationER11
Tool ChangingAutomatic
Form of  LubricationAir

    Cooling method and Medium

Internal Cooling,Water or Oil
Weight(kg)4.5

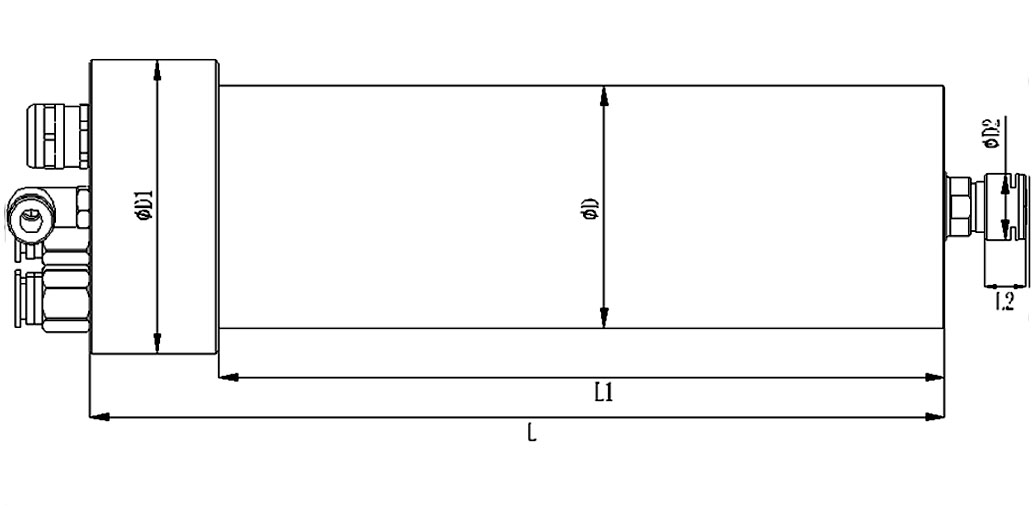

    Dimension
    (mm)
D61.902-61.91
D175
D217
L232.4
L1197.4
L211.2
L3/
N-S/
