It is built-in with a three-phase variable frequency asynchronousefficient motor, which is controlled at infinitely variable speeds through aninverter. By use of the installation method of flange plus T-slot on thebottom, it can make the spindle effectively fixed to reduce the damage of thespindle and extend the service life of the spindle.
In addition, its body is made of the aluminum with good dissipation;moreover, its body surface is designed with radiating fins, which caneffectively reduce the heat of the motor; the spindle is cooled by water, whichgreatly improves the effect of heat dissipation. The machining surface effectis much better; it is also characterized with big power and torque and smallyaw, etc.
1.Diversified cutter clamping: The motorized spindle for woodworking isdesigned with HSK, ISO, manual ER chuck and other forms, which can meetdifferent needs of customers.
2.High bearing capacity and rigidity: The front ofthe spindle is designed with a ceramic ball bearing of international well-knownbrand and big span bearing layout to ensure the high bearing capacity andrigidity of the spindle.
3.High heat dissipation: Its body is made of the aluminum with gooddissipation; moreover, its body surface is designed with radiating fins, whichcan effectively reduce the heat of the motor; the spindle is cooled by water,which greatly improves the effect of heat dissipation.
Spindle Model | DGZMG-07124/14.4-KPWCS | |
Speed | Rated Speed(rpm) | 9000 |
Maximum Speed(rpm) | 24000 | |
Power | Rated PowerS1(kW) | 12 |
Rated PowerS6(kW) | 14.4 | |
Torque | Rated TorqueS1(Nm) | 12.9 |
Rated TorqueS6(Nm) | 15.48 | |
Maximum Voltage(V) | 380 | |
Handle model | HSK F63 | |
Tool-change mode | Pneumatic | |
Form of broach | Non floating broach | |
Broaching force(N) | 11000x(1±10%) | |
Cooling method and Medium | Water | |
Form of Lubrication | Grease | |
The Weight(kg) | ~31.5 | |

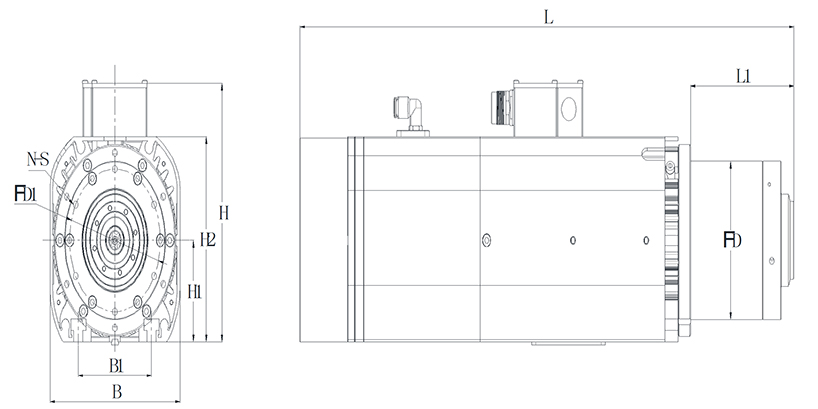

Dimension(mm) | D | 110 |
D1 | 121.5 | |
H | 179.5 | |
H1 | 70.5 | |
H2 | 142.5 | |
B | 80 | |
B1 | 142 | |
L | 511.8 | |
L1 | 105.5 | |
N-S | 6-M6 |
