Product Series：RV

Product Number：DCP-40E-81-B cycloidal pin gear speed reducer RV1-000

The product is a kind of main bearing built-in type cycloidal pin gear speedreducer; model: 40; reduction ratio: 81; nominal torque: 412 N.m; transmissionerror: ≤60″. It is mainly applied to 6-joint robot, pressing mechanical arm; itcan bear medium load; and it is featured by good operation stability and goodprecision retaining ability.

Features

1.Large transmission ratio and wide range, transmissionratio of single stage transmission: i=31~185;

2.High transmission accuracy, transmission error ≤60 arcseconds;

3.Steady movement, reliable operation, good precisionretaining ability;

4.Large torque rigidity, small vibration, impactresistant;

5.High transmission efficiency, and the transmissionefficiency reaches 85%~92%.

Parameter

Product model	DCP-40E-81-B cycloidal pin gear speed reducer RV1-000
Speed ratio	81
Nominal input power (Kw)	0.86
Nominal torque (N.m)	412
Allowable maximum instantaneous torque (N.m)	2058
Allowable maximum torque when start and stop (N.m)	1029
Allowable moment (N.m)	1666
Allowable maximum instantaneous moment (N.m)	3332
Moment rigidity (Nm/arc.min)	931
Allowable maximum output revolution (rpm)	70
Nominal output revolution (rpm)	15
Spring constant (Nm/arc.min)	108
Transmission accuracy (arc.min)	≤1
Idle stroke (arc.min)	≤1
Transmission efficiency (%)	85~92
Noise (dB(A))	60
Nominal service life (h)	6000

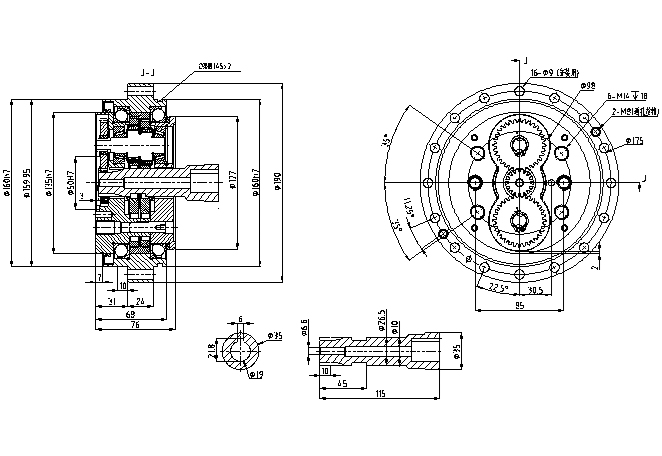

Dimensions
