Product Series:Handle of spring collet

Product Number:ISO-ER

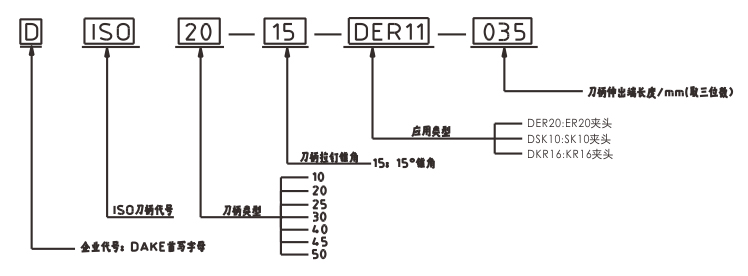

ISO-ER




Length of the shankat the extension end /mm (three-digit number)

Application type

DER20:ER20夹头

DER20:ER20 chuck

DSK10:SK6夹头

DSK10:SK6 chuck

DKR16:KR16夹头

DKR16:KR16 chuck

Taper angle of theshank rivet

15:15 taper angle

Enterprisecode: DAKE, an abbreviation of initial letters


1.High precision: Shankrun-out accuracy: ≤2μm.

2.Combined run-outaccuracy: ≤5μm

3.Dynamic balancinggrade: ≤G1

4.Advanced process ofsurface wearing resistance and corrosion resistance

5.Keyway-free structureis suitable for the high-speed application.

6.Suitable forengraving, milling and woodworking machining.

7.The taper angle of ERchuck for ISO shank is 8°.

8.Advantage of ISOshank with ER chuck: High repeatability precision (≤5μm), long service lifeclamping range of Φ1.0-20mm, H7-precision cutter.

技术参数
序号 项目 标准值
