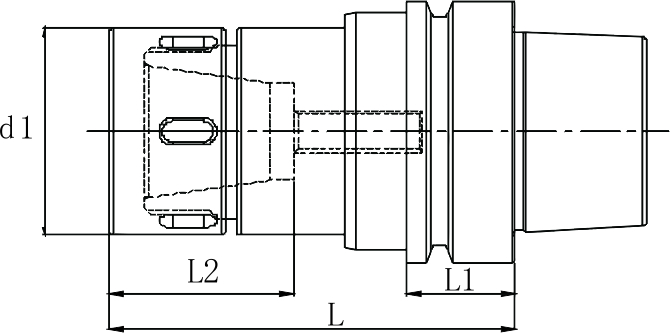

HSKE-KR
Application type
Drilling, reaming,tapping, milling and cutting
1.Dynamic balancinggrade: ≤G1.
2.High precision: Shankrun-out accuracy: ≤2μm. Combined run-out accuracy: ≤5μm.
3.High axial and radialrepeatability positioning precision.
4.Repeatabilitypositioning precision is ≤2μm.
5.Featuring highdynamic and static rigidity and stability, and high axial and radial accuracy,it ensures the accuracy of a product machined at high speed.
6.HSK shank is designedwith a structure of hollow short taper shank. Compared with BT shank, HSK shankhas a short length and light weight. With the power to change the cutter morequickly, it is especially suitable for high-speed machining.
7.The taper angle of KR chuck for HSKEshank is 5°.
8.Advantages of HSKEshank with KR chuck: High precision, long service life, clamping range ofΦ1.0-24.0mm, H7-precision cutter. It is widely used for milling, drilling,engraving and other machining areas.

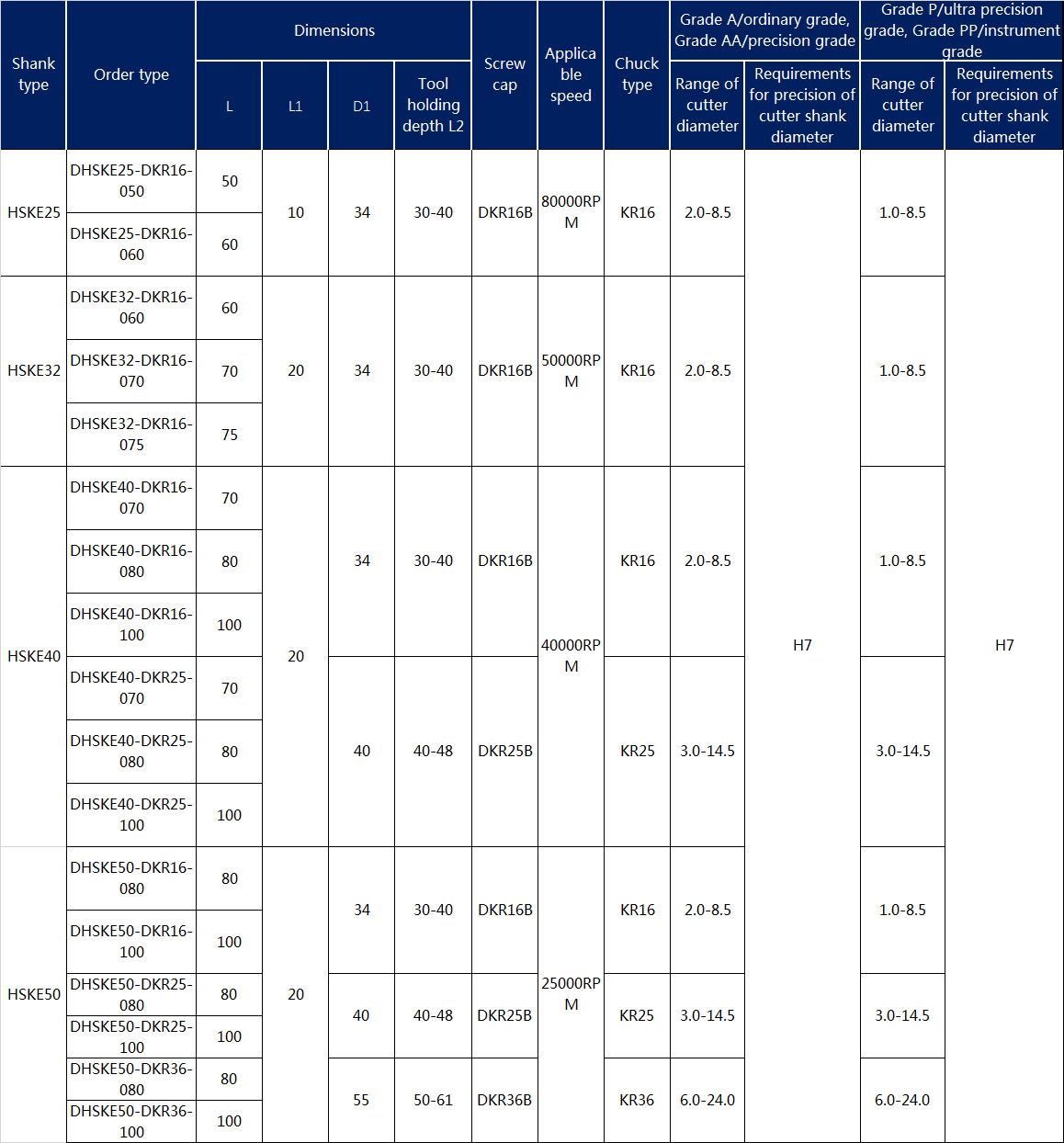

技术参数 |
序号 | 项目 | 标准值 |
---|
