Product Series:Handle of spring collet

Product Number:HSKE-SK

HSKE-SK

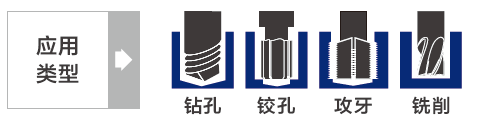

Application type

Drilling, reaming,tapping, milling and cutting


1.Dynamic balancinggrade: ≤G1.

2.High precision: Shankrun-out accuracy: ≤2μm. Combined run-out accuracy: ≤5μm

3.High axial and radialrepeatability positioning precision

4.Repeatabilitypositioning precision is ≤2μm.

5.Featuring highdynamic and static rigidity and stability, and high axial and radial accuracy,it ensures the accuracy of a product machined at high speed.

6.HSK shank is designedwith a structure of hollow short taper shank. Compared with BT shank, HSK shankhas a short length and light weight. With the power to change the cutter morequickly, it is especially suitable for high-speed machining.

7.The taper angle of SKchuck for HSKE shank is 4°.

8.Advantages ofHSKE shank with SK chuck:High precision, long service life, 1.5times greater than the torque value ofany other type of chuck, clamping range of Φ1.0-25.0mm, H7-precision cutter. Itis widely used for milling, drilling, engraving and other machining areas.

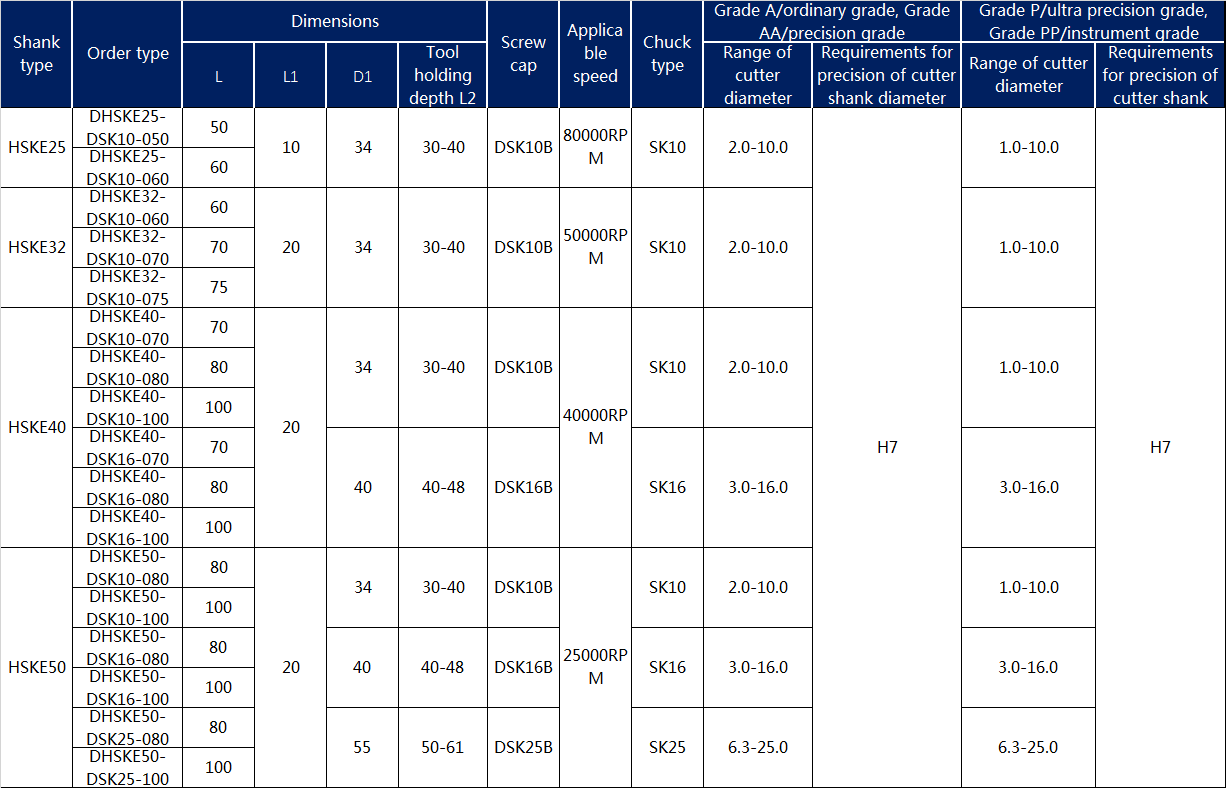

技术参数
序号 项目 标准值
