Product Series：Super Finish Spindle

Product Number：DQFX-08560/4.8-KPWVJS

Thisspindle is an air bearing ultra accurate high-speed motorized spindle, which ischaracterized with a high speed, high accuracy and high rigidity. It is mainlyused for precision equipment such as engraving and milling machine or machiningcenter, etc.; it can achieve the ultra-accurate efficient machining ofmaterials such as non-ferrous metal (aluminum alloy, copper alloy), glass,sapphire, ceramics, graphite, etc.

Features

Performance characteristics

1, long life: the use of gas hydrostatic bearings, non-contact, no wear, long life.
2, high precision: Due to the homogenization effect of gas hydrostatic bearings and up to 0.2um parts machining accuracy, there is a higher static and dynamic accuracy than the ball bearing spindle.
3, high rigidity, low vibration: bearing after precision calculation and unique simulation analysis software verification, with low vibration, high rigidity, high load capacity advantages.
4, high configuration: equipped with high-performance AC induction motor, high torque output, suitable for a variety of processing applications.
5, high reliability: the use of double spiral cooling structure, the spindle to maintain constant temperature processing, the performance is stable and reliable.
6, automatic tool change: some products are equipped with HSK E25 / E32 / E40 handle, with a higher axial, radial positioning accuracy, and can automatically change the knife.

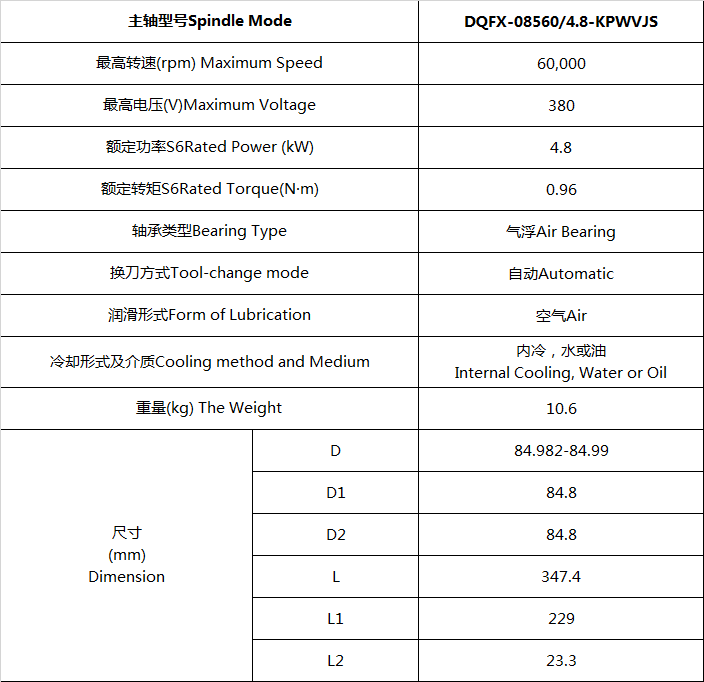

Parameter

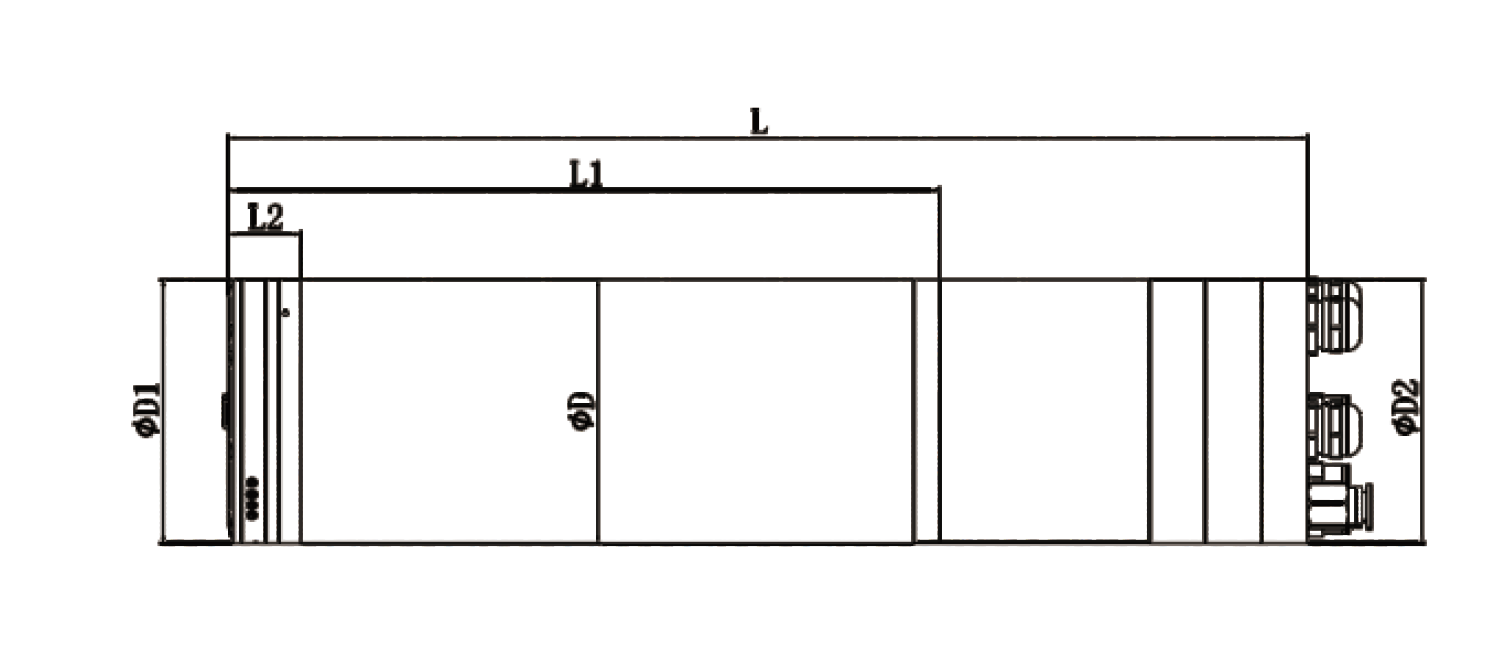

Dimensions
