Robot terminal actuator by Haozhi.High precision,Low weight,High clamping force,Faster, more flexible and smarter.
1. With a clamped wedge structure, the clamping force is large.
2. Solid T-rail design ensuring accurate clamping.
3. Lightweight design, compact, simple, small sized.
4. Full hardening treatment, giving a long life and stable clamping force.
5. Reliable performance withstanding 1-million impact testing.
6. Two-sided magnetic switch slot design is convenient for customers to operate.

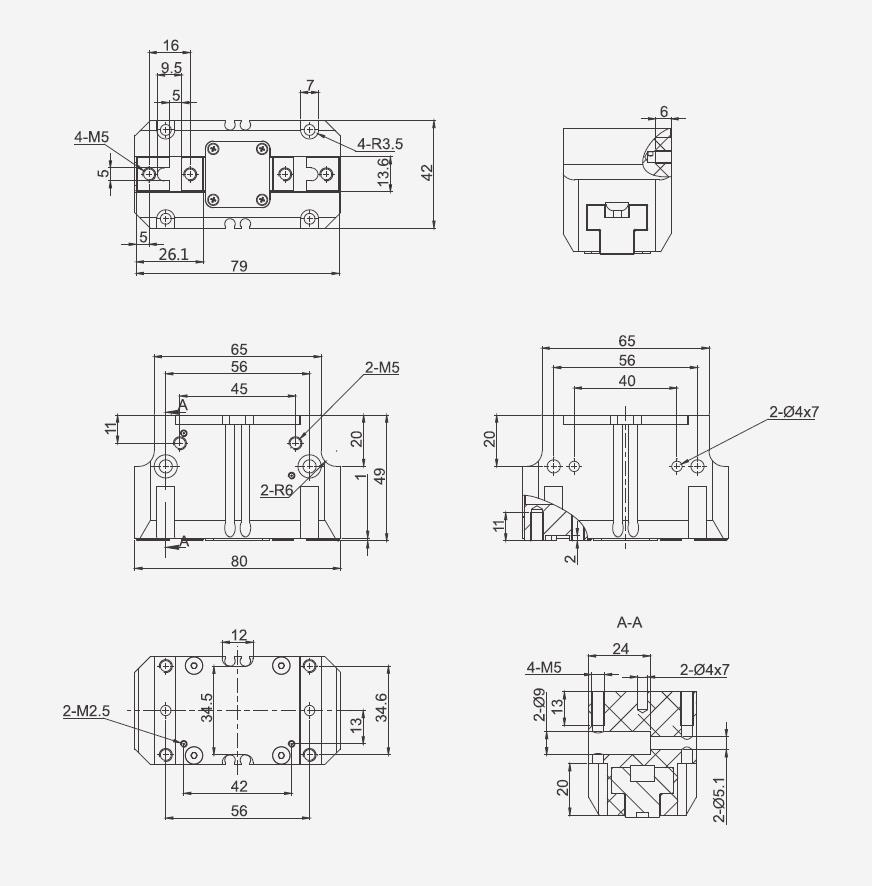

|Product model||DQZAP-80 / 8|
|Clamping/release force (N)||450/500|
|Repeated positioning accuracy (mm)||0.01|
|Rated working air pressure (Mpa)||0.6|
|Air fingering stroke (mm)||8|
|Clamping and releasing time (s)||0.1|
|The Weight (Kg )||0.45|
