Product Series:Ball Bearing Spindle

Product Number:DGZ-60C4

This product is characterized with a compactstructure, light weight, small inertia, small vibration and low noise andothers, which can achieve the forming with a high speed, high precision andhigh stability.

1.High precision: The static rotary accuracy ofthe motorized spindle at the spindle end is ≤0.002mm and the dynamic rotaryaccuracy is ≤0.006mm (delivery standard), so it has unparalleled highprecision, achieving the forming capacity with higher precision.
2.High power and high torque output: The built-inmotor is designed based on the consideration of the characteristics of thedriver performance. It is built-in with a three-phase variable frequencyasynchronous efficient motor so that its needed speed range, its output power,torque and machining capacity are greatly improved.
3.High configuration: With the automatic cutterchange function, and 2million times of cutter change, it is equipped with themotor temperature sensor and spindle speed sensor (optional). Also theinternational well-known ball bearing is used.
4.High energy-saving: The seal of the spindle hasreliable performance and the air consumption of the dust proof air seal isminimized, which helps to reduce operation cost of the end-user.
5.Low failure rate: The product is mature andstable, and the stability of the spindle is much better than that of peerproducts.


 Spindle ModelDGZ-60C4
 Bearing Type Ball Bearing
 Maximum Speed(rpm)60000
 Maximum Voltage(V)220
(S6) Maximum  Power(kW)1.8
(S6) Maximum  Torque(Nm)0.29
 Chuck Specification
 Tool Changing Automatic
 Form of Lubrication Grease

    Cooling method and Medium
Internal Cooling,Water or Oil
 Weight(kg)4.2

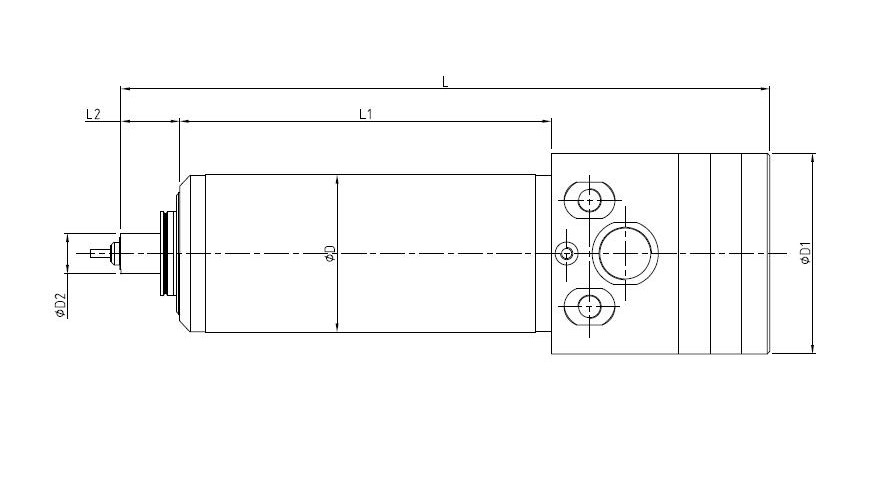

    Dimension
    (mm)
D61.92
 D178
 D216
 L255
 L1146
 L223
