Product Series:DD 4-Axis

Product Number:DZGD-200A7

Mainly applied in CNC machine,working as the indexing components.

1、High efficiency

With the maximum speed of revolution being 1500rpm and different from the external-driving rotary table in worm and gear kind, it can achieve the processing at a high speed and with high efficiency.


2、Ultra-high Precision

The rotary table uses the absolute type encoder with ultra-high precision, with the positioning accuracy being ±10″ and the repetitive positioning accuracy being ±2″.


3、High Stability

With the full simulation optimization for structure and an all-round test, it can ensure the stability of the whole machine after being used and verified by

more than 10,000 DD rotary table clients.

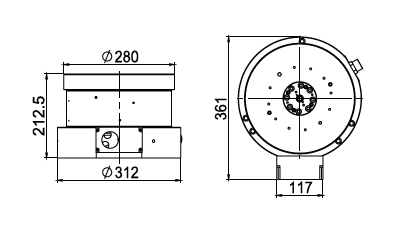

Rotary   Table ModelDZGD-200A7
Disk surface Diameter(mm)Φ280
Center for Hight(mm)212.5
Clamping WayAir
Clamping Torque(Nm)120
Disk Surface Runout(mm)0.005
Disk Surface Radial Runout (mm)0.02
Vacuum suction functionYes
Center vent functionYes
Driving TypeTorque motor direct drive
Voltage for Driver (V)220
Rated /Maximum Speed(Rpm)1500/1500
Rated /MaximumTorque(Nm)41.4/138.6
Rated/Maximum Current (A)20.4/75
Positioning Precision(arc-sec)±10
Repeated Positioning Precision(arc-sec)±2
Minimum unit (degree)0.001
Load Capacity (kg)40
Weight (kg)82
Level of ProtectionIP66
