Product Series:DD 5-Axis

Product Number:DZDA-125-250/400-105/20-A26-A/A

Mainly applied in CNC machine,working as the indexing components.

1、High efficiency

With the maximum speed of revolution being 2000rpm and different from the external-driving rotary table in worm and gear kind, it can achieve the processing at a high speed and with high efficiency.


2、Super Large Torque

The torque motor originally developed adopts the innovative design, with the efficiency improving 63% than that of general motor, thereby ensuring the highly-efficient processing in super large torque.


3、Ultra-high Precision

The rotary table uses the absolute type encoder with ultra-high precision, with the positioning accuracy being ±3″ and the repetitive positioning accuracy being ±1″.


4、High Clamping Force

The clamping structure in innovative design has smaller volume than the traditional disc brake and improves 10 times in response speed and 3 times in clamping rigidity.


5、Power-off Self-locking

The five-axis turntable with an innovative clamping mechanism can realize automatic locking of the A/C axis under extreme circumstances (such as abnormal power off of the mac hinetool) toprevent collision .


6、High Stability

With the full simulation optimization for structure and an all-round test, it can ensure the stability of the whole machine after being used and verified by more than 10,000 DD rotary table clients.

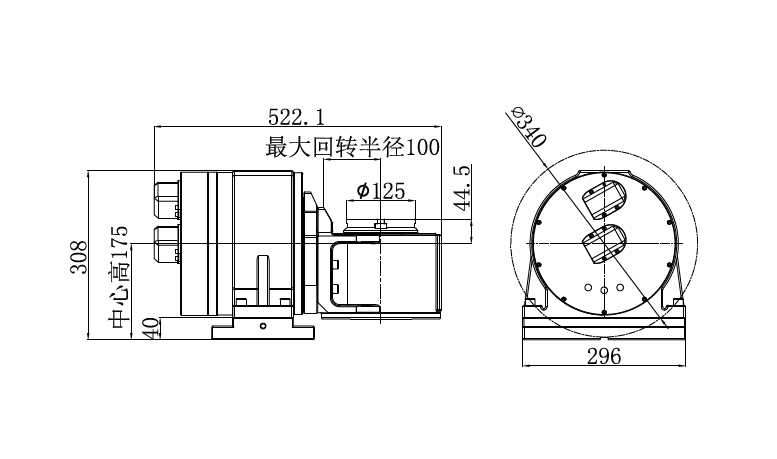

Rotary   Table ModelDZDA-125-250/400-105/20-A26-A/A

A-AxisC-Axis
Disk surface Diameter(mm)Φ125
Center for Hight(mm)175
Center hole diameterΦ30
Clamping WayAirAir
Clamping Torque(Nm)235235
Disk Surface/ Radial Runout (mm)0.0050.005
Driving TypeTorque   motor direct drive
Voltage for Driver (V)220
Rated /Maximum Speed(Rpm)200/250200/400
Rated /MaximumTorque(Nm)105/33220/113
Rated/Maximum Current (A)8.5/302.7/13.6
Positioning Precision(arc-sec)±3
Repeated Positioning Precision(arc-sec)±1
Minimum unit (degree)0.001
Load Capacity (kg)30
Weight (kg)120
Level of ProtectionIP66
