Mainly applied in CNC machine，working as the indexing components.
With the maximum speed of revolution being 2000rpm and different from the external-driving rotary table in worm and gear kind, it can achieve the processing at a high speed and with high efficiency.
2、Super Large Torque
The torque motor originally developed adopts the innovative design, with the efficiency improving 63% than that of general motor, thereby ensuring the highly-efficient processing in super large torque.
The rotary table uses the absolute type encoder with ultra-high precision, with the positioning accuracy being ±3″ and the repetitive positioning accuracy being ±1″.
4、High Clamping Force
The clamping structure in innovative design has smaller volume than the traditional disc brake and improves 10 times in response speed and 3 times in clamping rigidity.
The five-axis turntable with an innovative clamping mechanism can realize automatic locking of the A/C axis under extreme circumstances (such as abnormal power off of the mac hinetool) toprevent collision .
With the full simulation optimization for structure and an all-round test, it can ensure the stability of the whole machine after being used and verified by more than 10,000 DD rotary table clients.

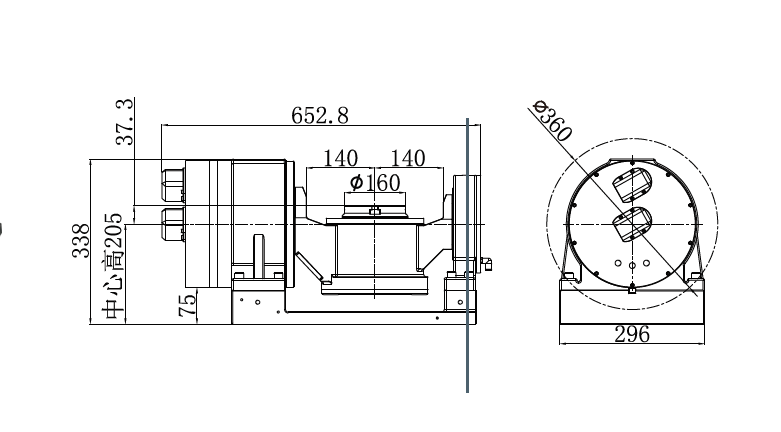

|Rotary Table Model||DZDC-125-250/400-105/20-A26-A/A|
|Disk surface Diameter（mm）||Φ160|
|Center for Hight（mm）||205|
|Center hole diameter||Φ30|
|Disk Surface/ Radial Runout (mm)||0.005/0.005|
|Driving Type||Torque motor direct drive|
|Voltage for Driver (V)||220|
|Rated /Maximum Speed（Rpm）||200/250||200/400|
|Rated/Maximum Current (A)||8.5/30||2.7/13.6|
|Repeated Positioning Precision(arc-sec)||±1|
|Minimum unit (degree)||0.001|
|Load Capacity (kg)||30|
|Level of Protection||IP66|
