Product Series:DD 5-Axis

Product Number:DZDC-350-60/200-557/253-A26W-A/A

Mainly applied in CNC machine,working as the indexing components.

1、High efficiency

With the maximum speed of revolution being 1500rpm and different from the external-driving rotary table in worm and gear kind, it can achieve the processing at a high speed and with high efficiency.


2、Super Large Torque

The torque motor originally developed adopts the innovative design, with the efficiency improving 32.3% than that of general motor, thereby ensuring the highly-efficient processing in super large torque.


3、Ultra-high Precision

The rotary table uses the absolute type encoder with ultra-high precision, with the positioning accuracy being ±3″ and the repetitive positioning accuracy being ±1″.


4、High Clamping Force

The clamping structure in innovative design has smaller volume than the traditional disc brake and improves 10 times in response speed and 3 times in clamping rigidity.


5、Power-off Self-locking

The five-axis turntable with an innovative clamping mechanism can realize automatic locking of the A/C axis under extreme circumstances (such as abnormal power off of the mac hinetool) toprevent collision .


6、High Stability

With the full simulation optimization for structure and an all-round test, it can ensure the stability of the whole machine after being used and verified by more than 10,000 DD rotary table clients.

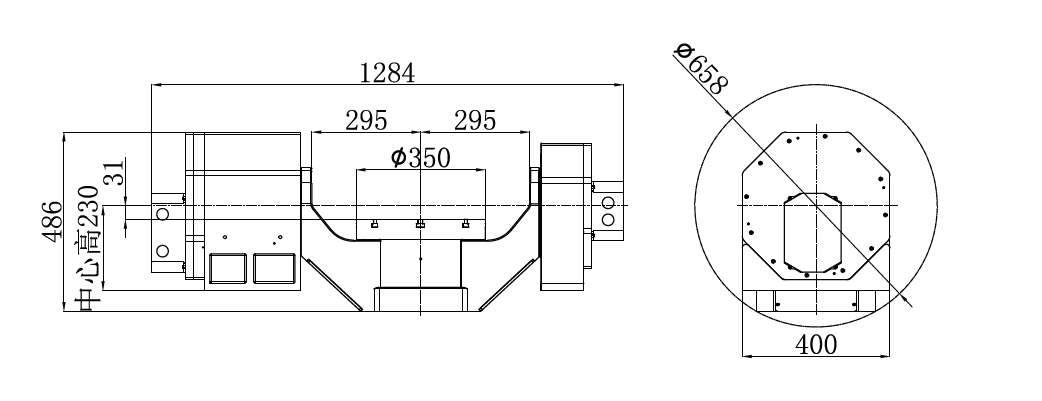

Rotary Table ModelDZDC-350-60/200-557/253-A26W-A/A
A axisC axis
Disk surface   diameter(mm)/350
Center  height(mm)230/
Disk  height(mm)/205
Center hole   diameter(mm)/50
Clamping WayAir(0.5-0.55MPa)Air(0.5-0.55MPa)
Clamping   Torque(N.m)2800(@0.5MPa)500(@0.5MPa)
Disk surface   runout(mm)/0.01
Disk Radial   runout(mm)/0.01
Driving TypeTorque motor direct   driveTorque motor direct   drive
Voltage for   Driver(V)220220
Rated/Maximum   Speed(rpm)60/60200/200
Rated/Maximum   Torque(N.m)557/1300253/748
Rated/Maximum   Current(A)13/3817.5/63
Power output   S1 100%(kW)3.5kW5.3kW
Power Output   S6 40%(kW)5.3kW7.5kW
Air seal gas   flow rate(L/min)//
Cooling systemWater cooling Water cooling
The cooling   flow rate≥4.2≥2.7
Motor   temperature sensor typeKTY84-130KTY84-130
Positioning   Precision(arc-sec)±10(20)±10(20)
Repeated   Positioning Precision(arc-sec)±2(4)±2(4)
Minimum   unit(°)0.0010.001
Load   Capacity(kg)100
Weight(kg)485
Level of   ProtectionIP66
Match  Lynuc,HNC,SYNTEC,FANUC,SIENMENS,MITSUBISHI   control systems.
