Product Series:Automated fixture (inside)

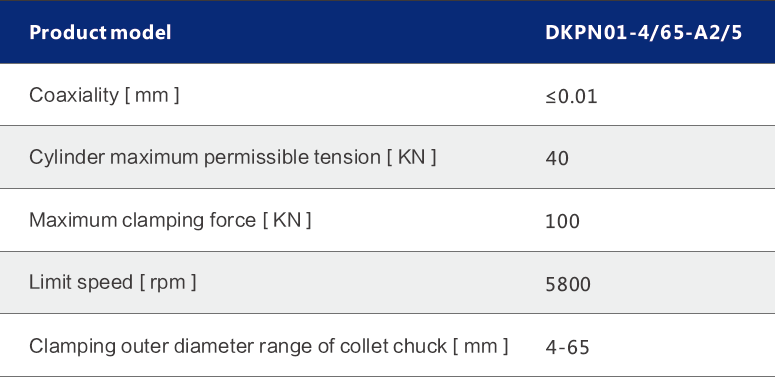

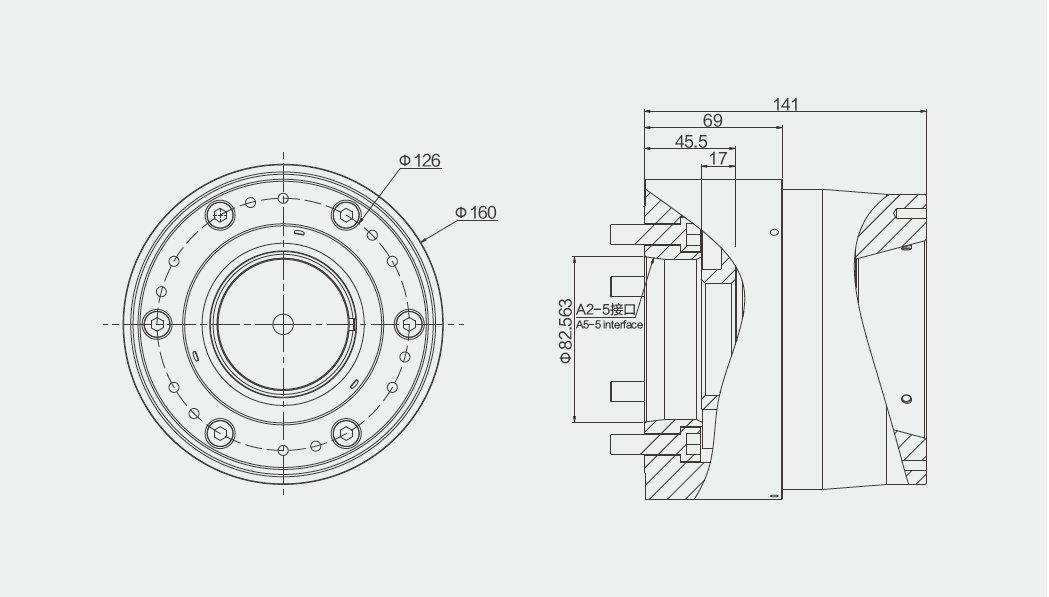

Product Number:DKPN01-4/65-A2/5 pull-back chuck

This product belongs to the automatic fixture, which is mainly used in CNC lathe, and has the feature of high speed, high accuracy and firm clamping. With the use of modular reverse tensioner and collet chuck, it can realize the quick switch between clamping workpiece outer circle and supporting inner hole to greatly improve the production efficiency.

1、High speed : The maximum working speed can reach 5800rpm to improve the surface quality of the workpiece.

2、High precision : The coaxiality is less than 0.01mm when clamping the outer circle and supporting the inner hole.

3、Firm clamping : With the clamping method of one clamp and one lean, the minimum clamping length can reach 5mm.

4、High efficiency : With the use of modular reverse tensioner and collet chuck, the workpiece can switch between clamping the outer circle and supporting the inner hole quickly.

5、Long service life : The relative sliding parts are treated with carbonitriding and surface quenching, which has good accuracy retention and long life span.
