Mainly applied for all kinds of high speed CNC machine, suitable for processing of large mould, automobile parts, aerospace parts.
1、High precision
The end inner cone face runout of CNC spindle is within 0.001 m, the vibration is within 1.0 mm/s, adopt HSK,BT tool holder etc, has the unique characteristics of high precision.
2、High speed
CNC spindle speed up to 30,000 RPM, provide strong support for high efficiency and high precision processing of CNC.
3、High torque
The low speed high torque characteristics of CNC spindle make heavy cutting for machining tool possible, so as to improve the working efficiency of products.
4、High configuration
CNC spindle can match high speed rotary unit, displacement sensor, vibration sensor, proximity switch, closed-loop control encoder, adopt international famous brand bearing.
5、Strong compatibility and good expansibility
CNC spindle has good compatibility, it can be widely used in all kinds of metal parts processing of high speed CNC.

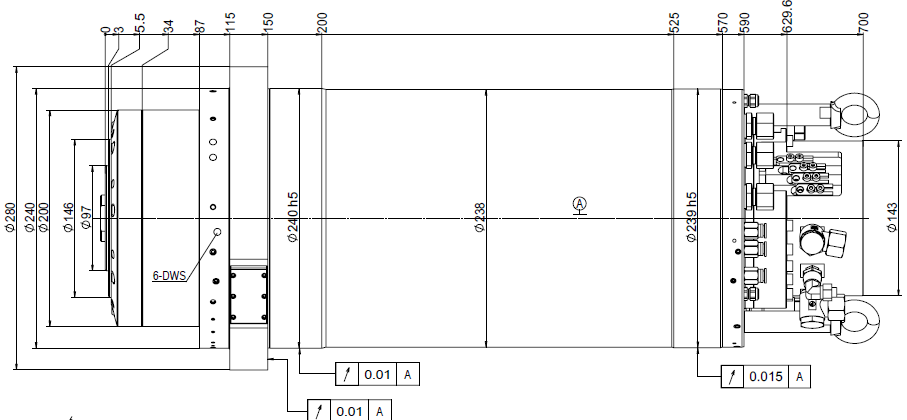

Model | DGZX-24010/22-KFHWVJLS | ||
Motor Type | Double winding asynchronous | ||
Winding Type | Low winding | High winding | |
Rated Power(S1-100%) | 22 kW | 22 kW | |
Rated Power(S6-40%) | 33kW | 33kW | |
Rated Torque(S1-100%) | 200 Nm | 71Nm | |
Rated Torque(S6-40%) | 300Nm | 106.5 Nm | |
Max. Speed (rpm) | 2800 rpm | 10000 rpm | |
Vibration | ≤1.0 mm/s (O-P) | ||
Bearings lubrication | Grease | ||
Tool holder | HSK-A100 | ||
Tool inner coolant | Water/oil/ Oil Mist/air |
