This product is an ultra-high-speed air-bearing spindle with ma rotational speed of 320,000 rpm. The spindle is designed with ultra-light body with automatic tool change function.Equipped with high-performance motor, it only takes 5.2 seconds for rising the speed to 320,000 rpm.Superior performance, while significantly improving the low-speed torque, it is fully upgraded in the aspects of large hole drilling capacity and small hole drilling accuracy.It is a product specially designed for high-precision, high-speed and high-efficiency drilling in the PCB industry.
1. High precision: The dynamic deflection at full speed is <6um, which is especially suitable for high-precision drilling with a diameter of 0.3-0.05mm.
2. High efficiency: The rotational speed can reach 200,000 rpm within 3.4 seconds;
250,000 rpm within 4.1 seconds;
320000rpm within 5.2 seconds;
The efficiency of start and stop is increased by 2.5%.
3. Strong ability to drill large holes: The low-speed torque reaches 0.044Nm, and the 5.0mm tool can continuously process more than 1000 holes (S25000 F0.2 R0.5 3*1.6mm FR4).
4. High thermal stability: The thermal-structure coupling model is established, and the temperature field is deeply optimized to ensure that the spindle temperature rise is ≤3.5℃ (competing product 4℃), the machine sizing is 6um (competitive product 7um), and the average CPK2.447 (competing product 2.44), further improving the drilling accuracy of the machine.

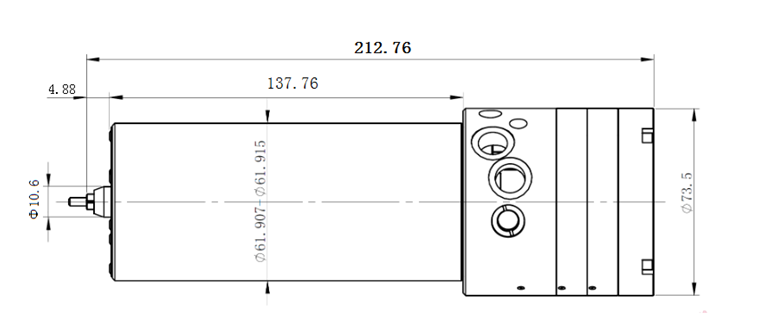

Spindle Model | DQF-320E | ||||||||
Maximum Speed(rpm) | 320000 | ||||||||
Maximum Voltage(V) | 220 | ||||||||
S6 Rated Power(kW) | Low winding | 0.45 | |||||||
High winding | 0.75 | ||||||||
S6 Rated Power(N·m) | Low winding | 0.044 | |||||||
High winding | 0.036 | ||||||||
Maximum Frequency(Hz) | Low winding | 3000 | |||||||
High winding | 5334 | ||||||||
S6 Rated Current(A) | Low winding | 2.93 | |||||||
High winding | 3.72 | ||||||||
Chuck Torque(N·cm) | ≥152 | ||||||||
Vibration Values(mm/s) | ≤0.8 | ||||||||
Cooling Form and Medium | Inteinal cooling | ||||||||
Cooling system coolant flow(L/min) | water:≥1.5(0.2MPa) | ||||||||
Cylinder Working Pressure(MPa) | 0.56~0.60 | ||||||||
Bearing Working Pressure(MPa) | 0.65~0.75 | ||||||||
Static Runout(μm) | ≤2.0 | ||||||||
Dynamic Runout(μm) | ≤6.0 | ||||||||
Air System Air Flow(L/min) | 50~66 |
