Product Series:Machining center series

Product Number:DGZX-27010/45

Mainly applied for all kinds of high speed CNC machine, suitable for processing of large mould, automobile parts, aerospace parts.

1、High precision

The end inner cone face runout of CNC spindle is within 0.001 m, the vibration is within 1.0 mm/s, adopt HSK,BT tool holder etc, has the unique characteristics of high precision.

2、High speed

CNC spindle speed up to 30,000 RPM, provide strong support for high efficiency and high precision processing of CNC.

3、High torque

The low speed high torque characteristics of CNC spindle make heavy cutting for machining tool possible, so as to improve the working efficiency of products.

4、High configuration

CNC spindle can match high speed rotary unit, displacement sensor, vibration sensor, proximity switch, closed-loop control encoder, adopt international famous brand bearing.

5、Strong compatibility and good expansibility

CNC spindle has good compatibility, it can be widely used in all kinds of metal parts processing of high speed CNC.

Spindle   ModelDGZX-27010/45
DiameterΦ270 mm
Length837 mm
Tool interfaceHSK-A100
Max. SpeedOil-air:10,000   rpm
    Grease: 8,000 rpm
Motor   technologyAsynchronous motor
Power S1-100%45 kW
Power   S6-40%  (2 min)67.5 kW
Torque S1-100%309 Nm
Torque   S6-40%  (2 min)463.5 Nm
Spindle   coolingWater
Coolant   through shaftWater / Oil mist
EncoderSin/cos, 1 Vpp
Thermistor in   coilKTY84-130
Thermistor for   bearingsPT100
Vibration   sensorOptional
Spindle growth   systemOptional
Weight265 kg

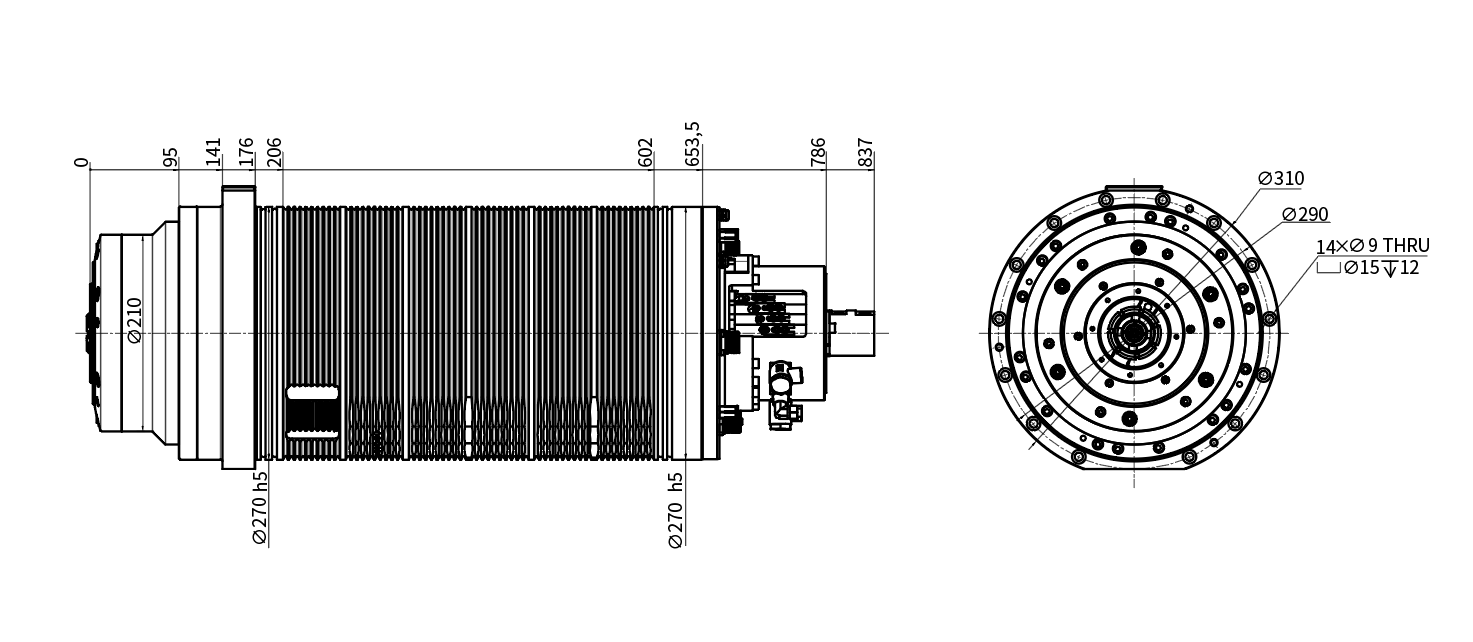

270101 尺寸图.png
