Product Series：Machining center series

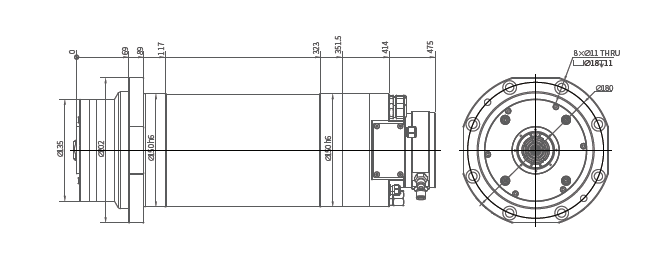

Product Number：Super Motor Spindle-DGZYX-15020/40-HSK

A high-performance motorized spindle designed for demanding machining applications, delivering speeds up to 20,000 rpm with 40 kW rated power and an HSK-A63 interface, ensuring stable and precise machining performance.

技术参数
序号 项目 标准值
Model: *DGZYX-15020/40-HSK
DiameterΦ150mm
Tool InterfaceHSK-A63
Bearings LubricationGrease
Motor systemSynchronous
The highest speed20,000rpm
Voltage380V
Rated power (S1-100%)40kW
Rated torque (S1-100%)50.9N.m
Rated power (S6-40%)60kW
Rated torque (S6-40%)76.4N.m
Spindle coolantWater (recommended)
Tool outer coolant(Ring spray)Water/Oil/Oil mist/Air
Tool inner coolant(Center cooling)Water/Oil/Oil mist
Tool ChangeHydraulic
Motor temperature sensorKTY84-130、PTC
EncoderSin/cos,1VPP
Tool clamping monitor sensor24V、PNP、Normally Open
Clamping Power18000-24000N
