Product Series：Machining center series

Product Number：Super Motor Spindle-DGZYX-18018/45–HSK

A high-performance motorized spindle designed for demanding machining applications, delivering up to 18,000 rpm with 45 kW rated power and HSK-A63 interface for stable and precise cutting performance.

技术参数
序号 项目 标准值

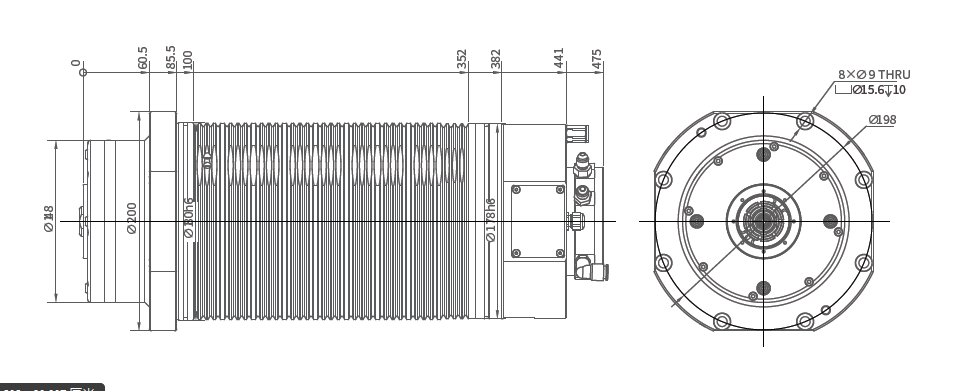

Model: *DGZYX-18018/45--HSK
DiameterΦ180mm
Tool InterfaceHSK-A63
Bearings LubricationGrease
Motor systemSingles winding Synchronous
The highest speed18,000rpm
Voltage380V
Rated power (S1-100%)45kW
Rated torque (S1-100%)100N.m
Rated power (S6-40%)67.5kW
Rated torque (S6-40%)150N.m
Spindle coolantWater (recommended)
Tool outer coolant(Ring spray)Water/Oil/Oil mist/Air
Tool inner coolant(Center cooling)Water/Oil/Oil mist
Tool ChangeHydraulic
Motor temperature sensorKTY84-130、PTC
EncoderSin/cos,1VPP
Tool clamping monitor sensor24V、PNP、Normally Open
Clamping Power14000-24000N
