Product Series：Lathe mechanical spindle

Product Number：DGZC-20045A2-FWC

This product is a kind of heavy-load lathe externally-driven spindle, the max. speed of which is 4,500rpm. With A2-6 nose design, it can be configured with Φ200mm V-shaped belt pulley as well as 8” and 10” chucks and oil cylinders. It is applicable to finish turning (FT) and re-machining of steel parts, casting and nonferrous metals as well as the installation of Model 52 CNC lathe and turning-milling composite machine tool. As a kind of lathe externally-driven spindle satisfying re-machining demands, it is mainly applied to processing in such fields as auto, aerospace and hardware.

Features

1.Application of high-performance bearing

With the application of bearing, it could realize a rigidity ≥800N/μm. The product can be used for 5mm re-cutting of stainless steel with a high efficiency.

2.Diverse configuration

Belt pulley and coding mode can be customized based on requirements.

Parameter

Max. speed (rpm)	4500
Balancing grade	G0.4
Lubrication mode	Oil
Nose form	A2-6
Taper of bore hole	1:20
Cone hopping (mm)	≤0.003
Front face hopping (mm)	≤0.003
Hopping at 300mm of standard bar	≤0.01
Bearing model	NN3018+NN3020+2x100B
through-hole diameter (mm)	φ66
Driving belt pulley	V belt
Coding belt pulley	8M
Weight (kg)	84
Mode of installation	Horizontal installation

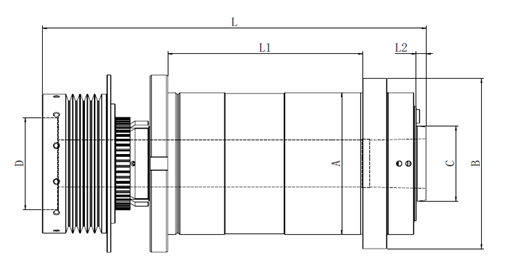

A	φ200
B	φ240
C	φ106
D	φ130
L	541.45
L1	300
L2	14

Dimensions
