Product Series：Lathe mechanical spindle

Product Number：DGZC-15006(DW)

This product is a kind of high-precision lathe externally-driven spindle, the max. speed of which is 6,000rpm. With A2-4 nose design, it can be configured with Φ120mm and V-shaped belt pulley.It can be configured with 5” and 6” chucks and is applicable to finish turning (FT) and re-machining of steel parts, casting and nonferrous metals as well as the installation of Model 36 CNC lathe and turning-milling composite machine tool. As a kind of lathe externally-driven spindle with high speed and precision, it is mainly used for processing in such fields as hardware, clocks and lamps.

Features

1. Application of high-performance bearing

With the application of bearing, the product could realize high rotation precision and is therefore applicable to the high-speed cutting of nonferrous metals in clock and lamp field. The cut samples have a favorable appearance grain with a roughness Ra≤0.4μm and roundness ≤2μm.

2. High stability

Full simulating optimization and all-dimensional tests and experiments; the product has been used and verified by over 10,000 clients to ensure its stability.

3. Diverse configuration

Belt pulley and coding mode can be customized based on requirements.

Parameter

Max. speed (rpm)	6000
Balancing grade	G0.4
Lubrication mode	Oil
Nose form	A2-4
Taper of bore hole	1:20
Cone hopping (mm)	≤0.003
Front face hopping (mm)	≤0.003
Hopping at 300mm of standard bar	≤0.01
Bearing model	4x7014
through-hole diameter (mm)	φ45
Driving belt pulley	V belt
Coding belt pulley	XL
Weight (kg)	44
Mode of installation	Horizontal installation

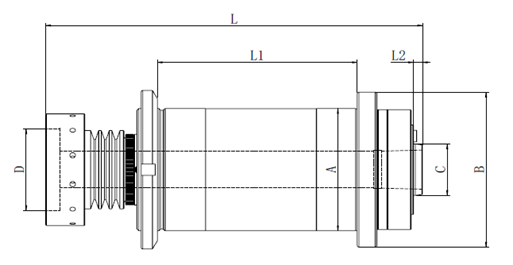

A	φ150
B	φ190
C	φ63
D	φ100
L	462
L1	245
L2	11

Dimensions
