Product Series：Lathe spindle

Product Number：DGZYC-24045／22-FWVS

This product refers to a kind of heavy-load lathe motorized spindle, whose max. speed could reach 4,500 rpm. With A2-6 nose and an installation diameter of 240 mm, the spindle is configured with 22 kW permanent magnet synchronous motor with rated and max. torsion of 140 Nm and 431 Nm respectively. It can be configured with 8” and 10” chuck and oil cylinder and used for finish turning and heavy cutting of steel parts, casting and nonferrous metals as well as installation of Type 52 CNC lathe and turning-milling composite machine tool.

As a kind of lathe motorized spindle that could satisfy the requirements of heavy cutting, it is mainly applied to such fields as motor, aerospace, hardware, etc.

Features

1. Application of high-performance heavy load bearing:

The rigidity is ≥800N/μm through optimizing bearing application, making it applicable to 5mm heavy cutting of stainless steel. The processing efficiency is also high.

2. High-performance permanent magnet synchronous motor:

Rated power: 22 kW

Rated torque: 140 Nm

Max. speed: 4,500 rpm

Max.torque：431.7Nm

Max. torque: 431.7 Nm

3. Diverse configuration:

Voltage and encoder could be chosen based on the specific demands.

Parameter

Motor type	3-phase AC permanent-magnet synchronous motor
Max. speed (rpm)	4500
Max. current (A)	169
Max. torque (Nm)	431.7
Rated voltage (V)	220/380
Rated power (S1/100%) (kW)	22
Rated torsion (S1/100%) (Nm)	140
Balancing grade	G0.4
Lubrication form	Oil grease
Nose form	A2-6
Cone run-out (mm)	≤0.003
Front face run-out (mm)	≤0.003
Run-out of standard bar at 300mm	≤0.01
Bearing model	4x7022+N1017
through-hole diameter (mm)	φ66
Encoder	Sinusoid magnetic sensing encoder
Weight (kg)	156
Installation form	Horizontal installation

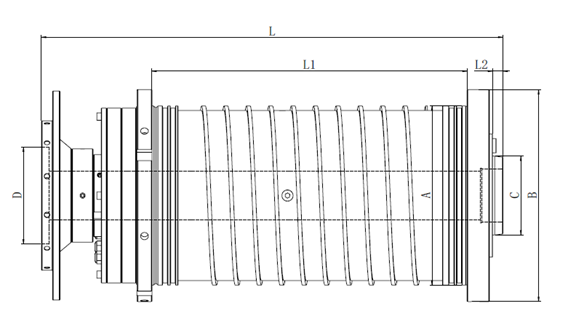

A	φ240
B	φ284
C	φ105.6
D	φ130
L	618
L1	422
L2	14
Applicable CNC system：Siemens, Fanuc, Huazhong Numeral Control, GSK, Baoyuan etc.

Dimensions
