Product Series：Lathe spindle

Product Number：DGZYC-20006／11A-FWVS

This product is a kind of highly precise heavy-load lathe motorized spindle，whose max. speed could reach 5000 rpm. With A2-5 nose and can be configured with 6” and 8” chuck.It used for finish turning and heavy cutting of steel parts, casting and nonferrous metals as well as installation of CNC lathe and turning-milling composite machine tool, it is mainly applied to such fields as motor, aerospace, hardware, etc.

Features

1. Application of high-performance heavy load bearing:

The rigidity is ≥650N/μm through optimizing bearing application, making it applicable to 4mm heavy cutting of stainless steel. The processing efficiency is also high.

2. High-performance permanent magnet synchronous motor:

Rated power: 11 kW

Rated torque: 150 Nm

Max. speed: 5000 rpm

Max. torque: 161.4 Nm

3. Diverse configuration：

Voltage and encoder could be chosen based on the specific demands.

Parameter

Motor type	3-phase AC permanent-magnet synchronous motor
Max. speed (rpm)	5000
Max. current (A)	42
Max. torque (Nm)	161.4
Rated voltage (V)	220/380
Rated power (S1/100%) (kW)	11
Rated torque (S1/100%) (Nm)	105
Balancing grade	G0.4
Lubrication form	Oil grease
Nose form	A2-6
Taper of bore hole	1:19.18
Cone run-out (mm)	≤0.003
Front face run-out (mm)	≤0.003
Run-out of standard bar at 300mm	≤0.01
Bearing model	4x7018+2x7014
through-hole diameter (mm)	φ56
Encoder	Sinusoid magnetic sensing encoder
Weight (kg)	103
Installation form	Horizontal installation
A	φ200
B	φ245
C	φ82
D	φ100
L	605
L1	405
L2	13
Applicable CNC system：Siemens, Fanuc, Huazhong Numeral Control, GSK, Baoyuan etc.

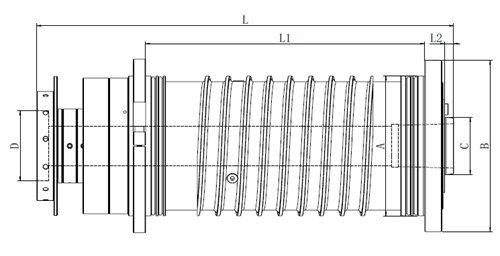

Dimensions
