This product is a kind of highly precise heavy-load lathe motorized spindle,whose max. speed could reach6000 rpm. With A2-5 nose and an installation diameter of 170 mm, the spindle is configured with 10 kW permanent magnet synchronous motor with rated and max. torsion of 38.2 Nm and 93.9 Nm respectively. It can be configured with 6” and 8” chuck and oil cylinder and used for finish turning and heavy cutting of steel parts, casting and nonferrous metals as well as installation of Type 46 CNC lathe and turning-milling composite machine tool. As a kind of lathe motorized spindle that could satisfy the requirements of heavy cutting.
And the same mounting size as the universal A2-6 external drive spindle, can be directly switched.It is mainly applied to such fields as motor, aerospace, hardware, etc.
1. Application of high-performance heavy load bearing:
The rigidity is ≥600N/μm through optimizing bearing application, making it applicable to 4mm heavy cutting of stainless steel. The processing efficiency is also high.
2. High-performance permanent magnet synchronous motor:
Rated power: 11 kW
Rated torque: 150 Nm
Max. speed: 6000 rpm
Max. torque: 161.4 Nm
Voltage and encoder could be chosen based on the specific demands.

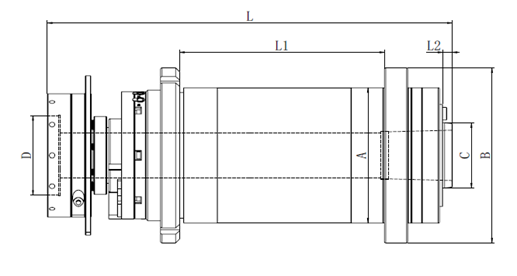

|Motor type||3-phase AC permanent-magnet synchronous motor|
|Max. speed (rpm)||6000|
|Max. current (A)||50|
|Max. torque (Nm)||93.9|
|Rated voltage (V)||380|
|Rated power (S1/100%) (kW)||10|
|Rated torque (S1/100%) (Nm)||38.2|
|Lubrication form||Oil grease|
|Taper of bore hole||1:20|
|Cone run-out (mm)||≤0.003|
|Front face run-out (mm)||≤0.003|
|Run-out of standard bar at 300mm||≤0.01|
|through-hole diameter (mm)||φ56|
|Encoder||Sinusoid magnetic sensing encoder / Encoder of Xindai|
|Installation form||Horizontal installation|
|Applicable CNC system：Siemens, Fanuc,Xindai, Huazhong Numeral Control, GSK, Baoyuan etc.|
